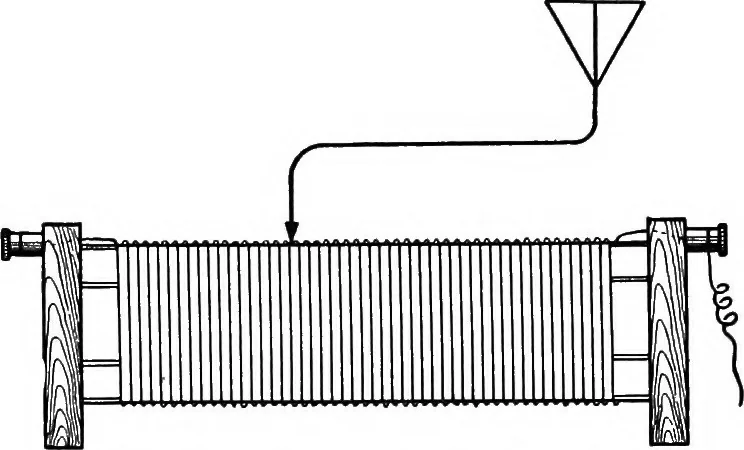

er as follows: Con-nection is made from the binding post Eof the left hand inside jar A to the aerialsystem. The outer coating of jar A restson the inside coating of the jar B. Theoutside coating of jar B makes contactwith the outside coating of the jar Dthrough the metal rack. The circuit… … Fig. 127—Drum Type Aerial Tuning Inductance. .0005 mfds. The short wave condenser may be connected in series with either the aerialwires or the earth lead. 106. High Potential Condensers.—The Leyden jar type of condenser hasbeen described in paragraph 84. The assembly of the flat plate condenser…
