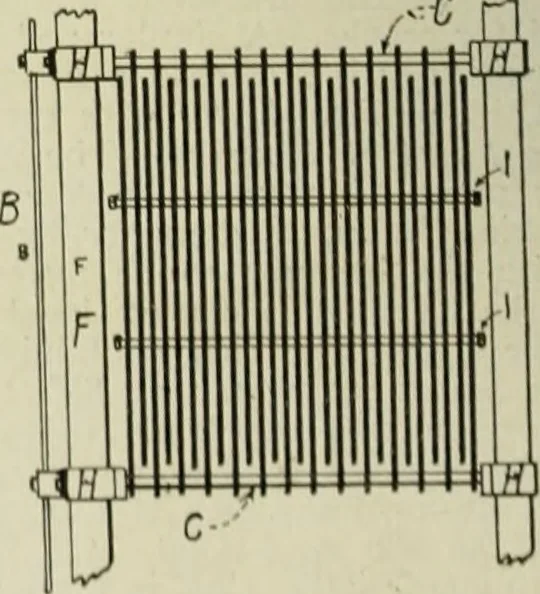

. 10, spaced about 6 ins.apart, each set consisting of 27 cast ironplates each 3/16x10x24 ins. Alternate platesof each set form the anode and cathode re-spectively, and are both separated and elec-trically connected by cylindrical bushing con-ductors C, see Fig. 3. These are fitted uponbolts on… … Fig. 3—Partial Plan of Flume. in, rubber tubing ate passed through theplates m the same plane with the conductorbolts, and on these bolts the plates arc sup-arated by cylindrical insulating bushings ofhard rubber. Each of the 810 cast ironplates is capped for Ms entire length with a copper channel…
