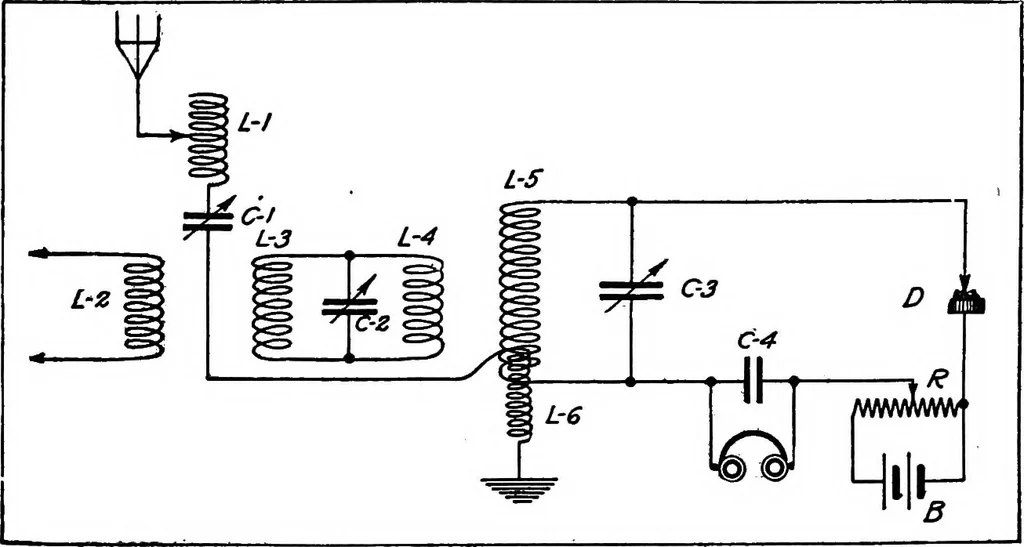

nna circuit. Thiscondenser is mounted on the left hand side on the top of the tuner. L-2 is the primary winding of the receiving tuner and has a fixed value of inductance(not variable). 146 PRACTICAL WIRELESS TELEGRAPHY. Coil L-3, condenser C-2, coil L-4 comprise the intermediate circuit. L-3 is of… … Fig. 165c—Standby Short Wave Circuits of 107a Tuner. Coils L-3 and L-4 are wound on balls or spheres, mounted on a shaft so they can beturned at a right angle to L-2 and L-S, simultaneously. This is effected by means of the;oupling knob mounted on the right hand end of the tuner, and thus the…
