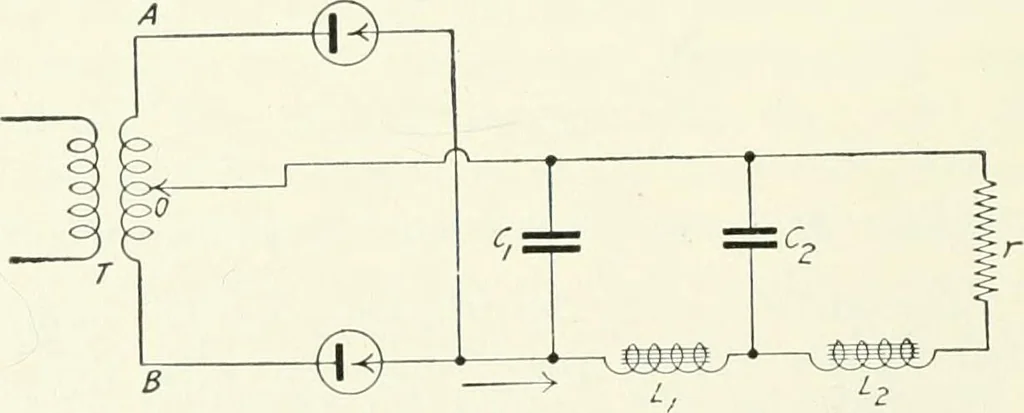

VACUUM TUBE Better results can, of course, be obtained by adding moresections to the wave filter LCi. Such an arrangement is shown inFig. 59, which at the same time shows a circuit that makes possible 1/ c 2 8o O :dU-<D 6 oc en 41 (LI \m ^^ \ \ \ V IV \ V 0 \ ~- 3 4 5 6 ■ Lo9r(Looiol Resistance)… … Fig. 59. positive, the current being transmitted through the tubes alter-nately. Let us now see to what extent the added filter section con-tributes in reducing the voltage fluctuations in r and how they RECTIFICATION OF CURRENTS BY THERMIONIC VALVE 137 depend on the value of r. Let bE^, dE2 and…
