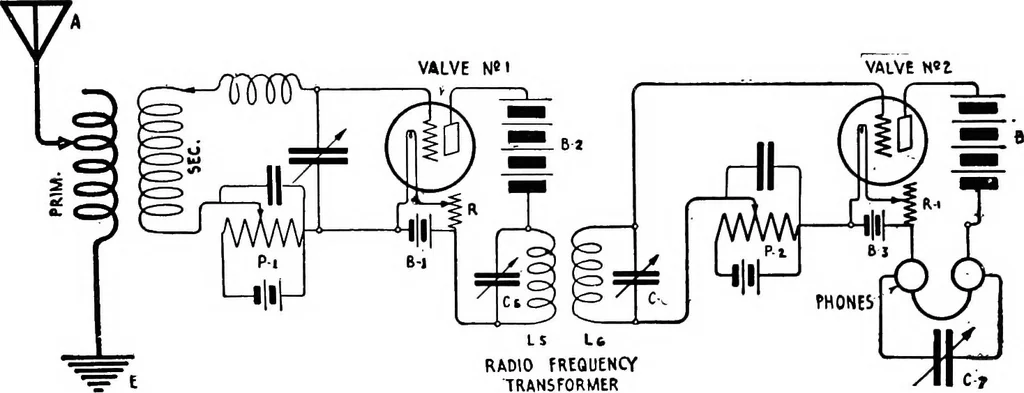

ttery. RECEIVING CIRCUITS, DETECTORS, TUNING APPARATUS. 163 144. The Vacuum Valve Amplifier.—The incoming signals made audibleby the simple vacuum valve circuit shown in Fig. 179, may be amplified consider-ably by connecting several oscillation valves in cascade as per the diagram, Fig.185. The… … Fig. 187—Circuit for Cascade Ampliiication of Radio Frequencies, In the diagram, Fig. 185, in which the left-hand part of the circuit starts with the sec-ondary winding of the receiving transformer, the telephones are removed from the localbattery circuit and replaced by an iron core inductively…
