Airplane characteristics; a systematic introduction for flyer and student and for all who are interested in aviation (1918)
Bedell, Frederick, b. 1868- · Ithaca, N. Y., Taylor and Company · leaf 33

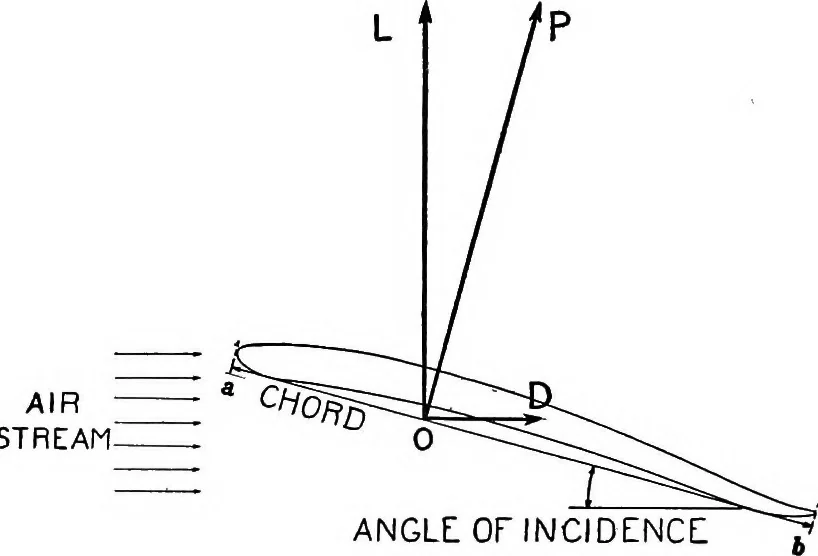

ts under surface at front and rear. Digitized by Microsoft® 16 AIKPLA NE CHA RA CTERISTICS The length of chord is the length of the projection ab of thewing-section upon this chord. Similarly, the area of acambered wing is its area projected on a tangent plane. Thespan or spread of a wing is the… … angle: OF INCIDENCE Pig. 10. Section of cambered wing, showing angle of incidence between the chord and the air-stream, and the components of pressure. Wing structure. The whole wing structure is often referred to as an aerofoil.Wings are made in many ways; although no standard con-struction can be…
Airplanes
