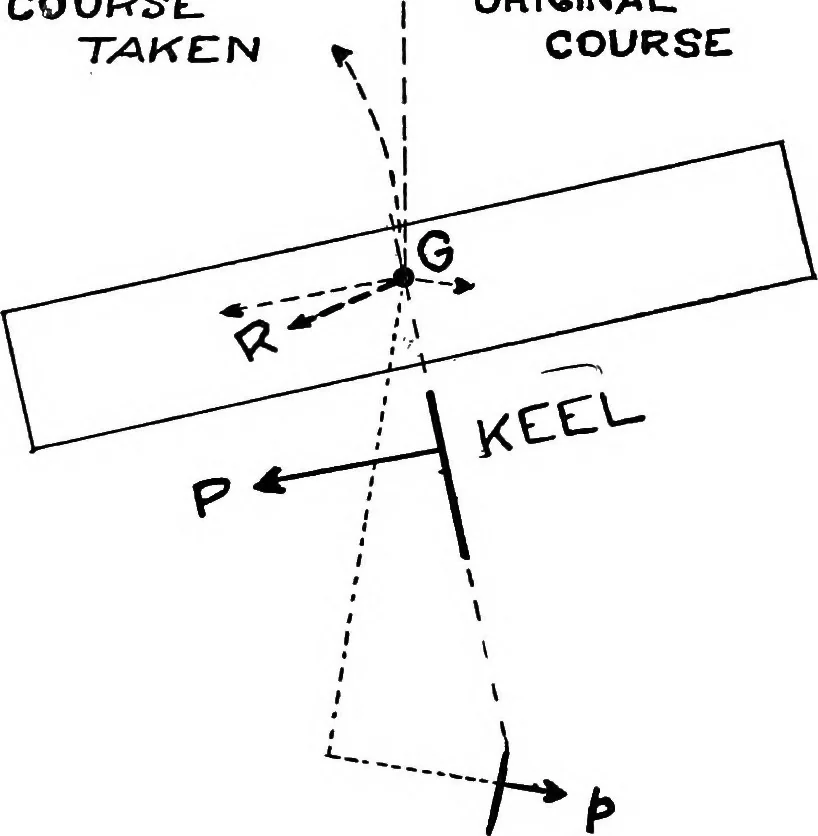

s acting at G with the resultant R. The two couples thus cancelled do not affect the motion of the air-plane as a whole; they do, however, enter into strength computations. Digitized by Microsoft® DIRECTIONAL STABILITY 71 the rudder has been the only means for banking, no aileronsor similar devices… … RUDDER Fig. 14. Action of keel in turning. (c) Turning causes a decrease in lift and a tendency todescend, i. e., a tendency to stall, for two reasons: (i) Onaccount of loss of speed described in h, the pressure on thewings, and hence the lift, is decreased; (2) On account ofbanking described in a,…
