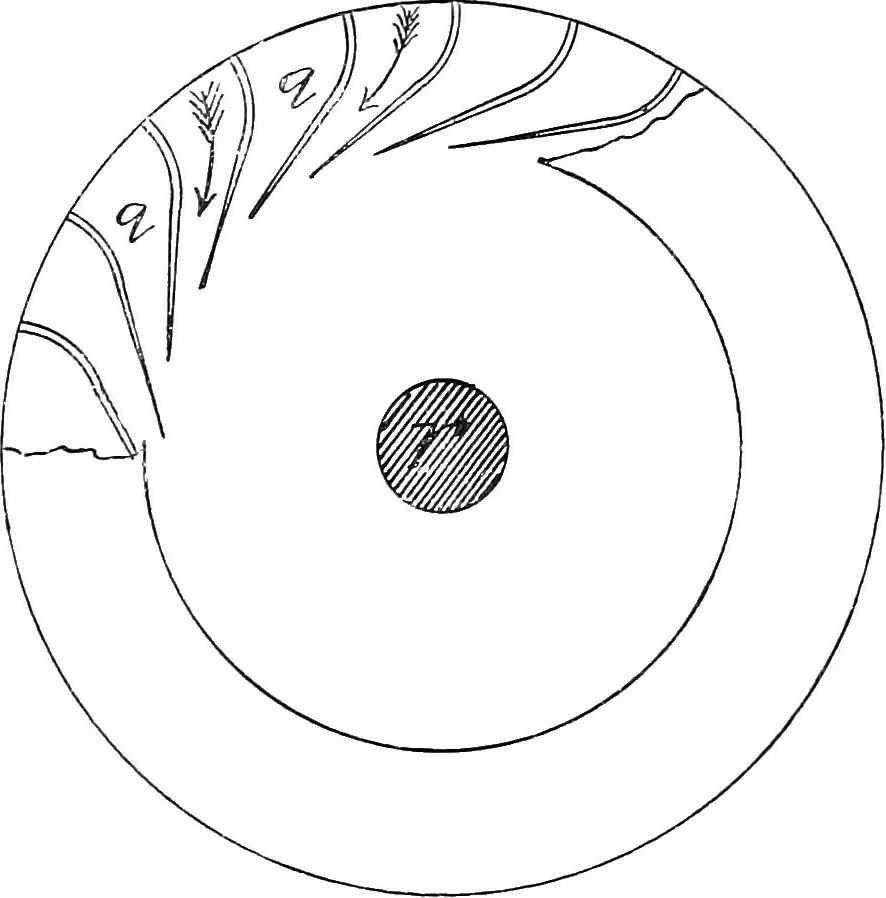

them, the links being connected by their otherends to projections on the guides. This turbine is of a class known as Thompsonsvortex turbines, and with the exception of the moving vanes is similar in con-struction to these turbines. The vanes, however, are shown as constructed onmy improved plan,… … Fig. 4. turbines have hitherto been constructed. The advantages of my method ofarranging the vanes are (1) simplicity of construction, and (2) that such anarrangement gives rise to less friction than the usual construction. Thismethod of constructing the moving passages is (as has been previously…
