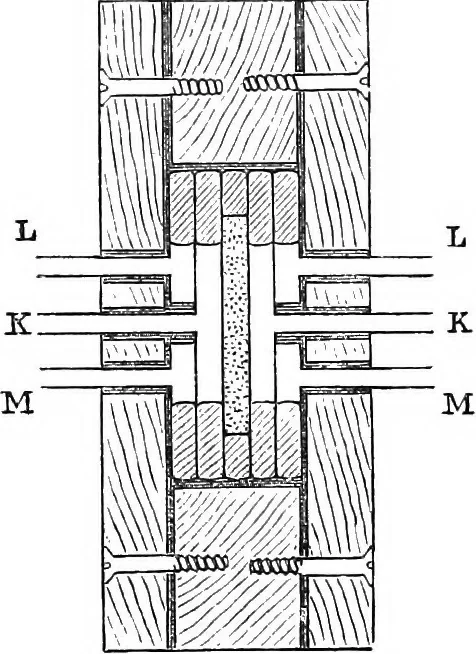

ese chambers. HH. The india-rubber rings which form the hot and cold chambers. //. The tin plates which close these chambers. KK. Tubes soldered to the tin plates GG to communicate with thechambers FF, and LiM, LM. Are tubes soldered to the tin plates //, to allow of thestreams of steam or water… … Fig. 3.Conduction of heat. 12. The circumstance which principally led to the selection of this formof apparatus was the necessity of preventing, as far as possible, the conductionof heat from the hot to the cold side, through the material bounding thechambers. It will be seen that there is no…
