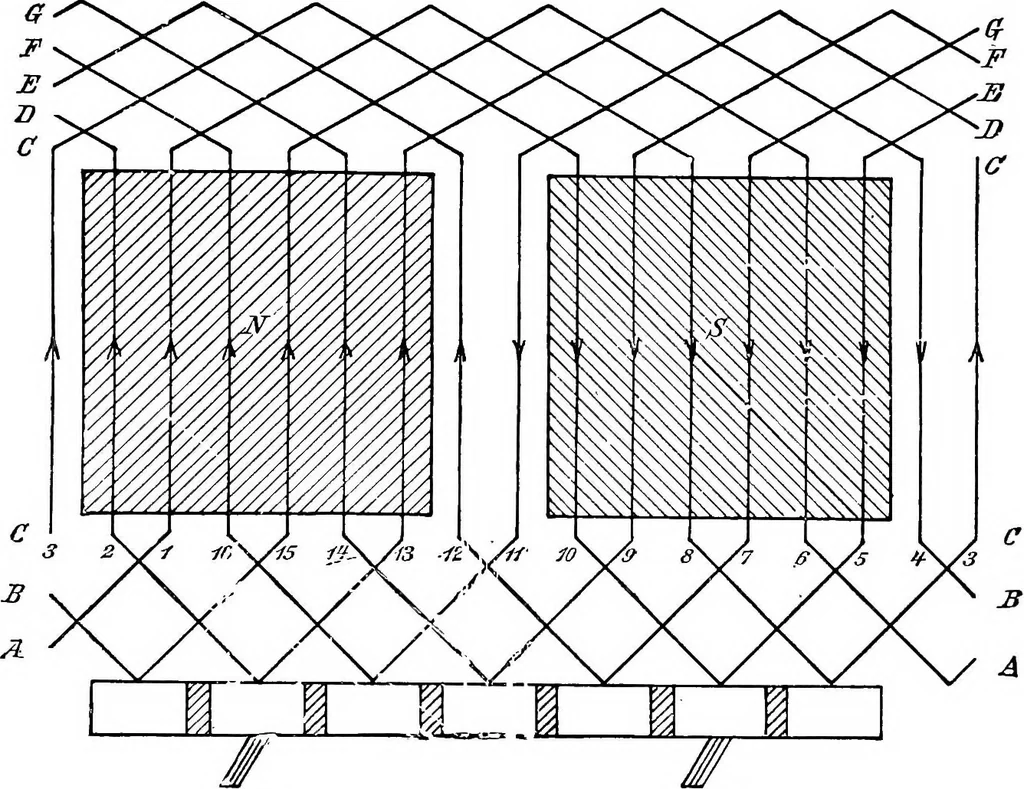

ced on the segment connected to the end-connection 2—13. 44 Bipolar Drum-winding 115 The current enters the machine at the negative brush, divides and flowsthrough two parallel paths to the positive brush. At the moment representedin Fig. loi the paths of the current through the armature can be… … Fig. 103 short-circuited by the negative and positive brushes respectively, and arethereby cut out of the circuit. No arrows are drawn, therefore, to indicatethe current in the end-connections of the wires 2, ir, 3 and 10. The pathsof the current through the armature are as follows: 16 9 14 7 12…
