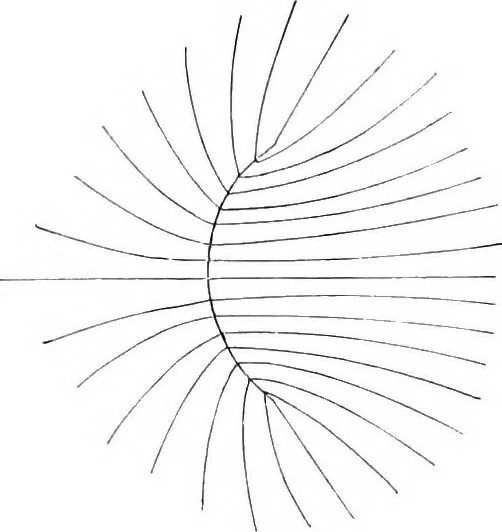

Fig. 13. (3) The shape of the lines will also depend on the shape of the hotsurface, and the nature of the surface as affecting the rate at which it com-municates heat to the gas. 33] IN THE GASEOUS STATE. 375 Fig. 14 shows the direction of the lines for a cup-shaped surface, supposedto be… … Fig. 14. In all these figures the lines are supposed to be drawn so that the distancebetween any two lines is somewhere between s and 2s, so that the excess ofpressure along the lines of flow depends, cmteris paribus, on the angle betweentwo consecutive lines. Thus the divergence of the lines…
