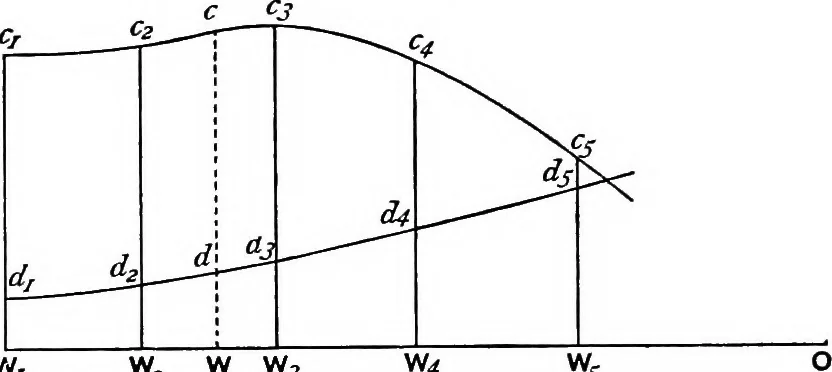

d,or else, for any inclined water-line chosen, a calculation is made ofthe volume that water-line cuts off, and the position of its centre ofbuoyancy. A mechanical integrator of great ingenuity, devisedby Dr. Amsler (the inventor of the planimeter), enables these cal-culations to be very rapidly… … w. base-line OWW, taken; 0 corresponds to the point 0 in Fig. 66, and is the zero of draught. The draughts of water corresponding to the upright water-lines WjZj, w2li, etc., are next set off (to any selected scale) on the base-line, measuring from 0; Wb W2 W3, etc., represent these draughts;…
