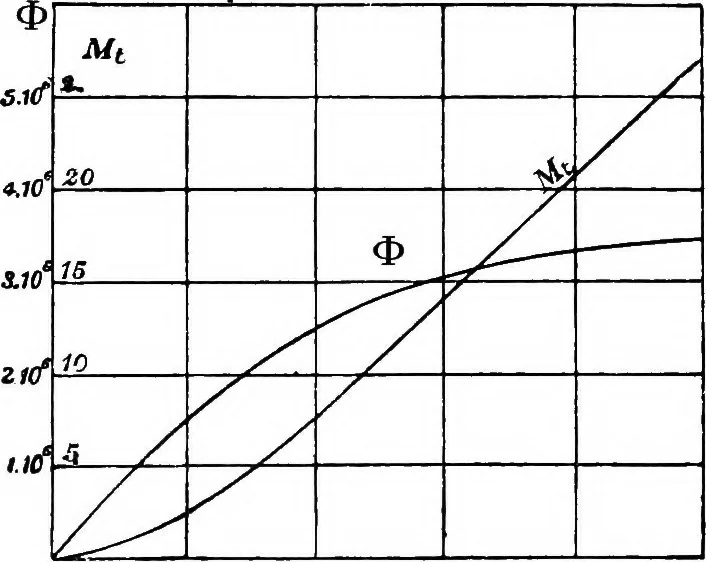

vvw^ fig. 205 when considering the shunt motor, that with a constant load a weakeningof the field leads to an increase in the armature current. To determine thestrength of the armature current that flows when the field winding is shunted,we must first draw the characteristic curves of the motor… … 4) 110 1 $ sic ./ ^ / ^/ iw S 10 IS 20 AjrrrvacCrjre OrjLrre:nt 2S 0 10 20 30 40 AmcUitrt CurrerUi S9 Fig. 206 Fig. 207 ance (Fig. 206). The ordinates of the curve Mf are equal to the product ofthe corresponding values of the flux O and the current /„. In Fig. 207 wehave the same curves for the…
