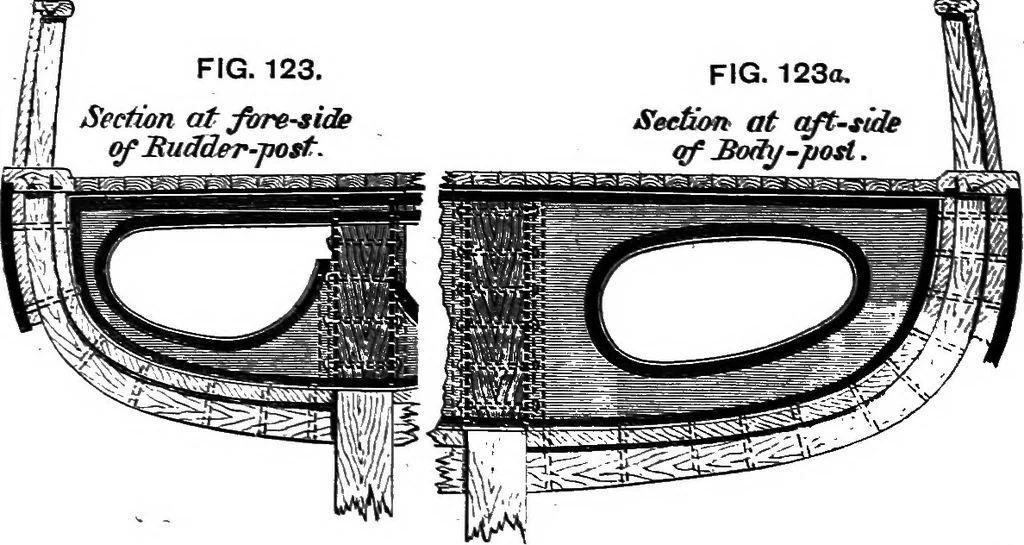

to the counter of the ship. With a lifting screw, this knee couldnot be fitted, but the screw-well was then made an efficientstrengthener. Partial bulkheads of iron were built across the sternat the fore side of the rudder-post and the aft side of the body-post. FIG. 123.Section at fireside … FIG. 123a. Section at aft-sideof Hodij-posl. The construction of these is shown.in Figs. 123 and. 123a; their upper■edges were secured to the deck-plating (ce), while their outer edgeswere bolted to the sides of .the ship. Change of form was thusTendered practically impossible at. those two…
