A manual of naval architecture for the use of officers of the Royal Navy, officers of the Mercantile Marine, yachtsmen, shipowners, and shipbuilders (1894)
White, W. H. (William Henry), Sir, 1845-1913 · London : J. Murray · leaf 544

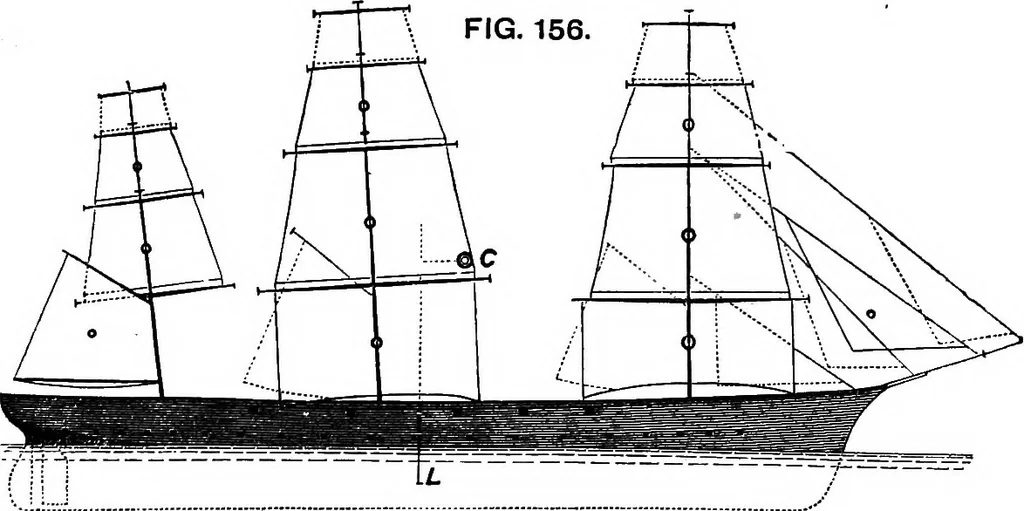

resistance abalCentre of effort before centre of t ditto lateral resistance 60 „ 12-43 feet. the line of action of the resultant wind pressure. But, on the otherhand, experience proves that the longitudinal distance between thecentre of effort 0 and the centre of lateral resistance L should… … the particulars required for an approximate calculation are easilyobtainable from the ship herself, being the length at the load-line,draught of water forward and aft, area of rudder, and area of aperturein stern for screw, if the vessel be so constructed. The distance of the centre of effort…
Naval architecture
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
