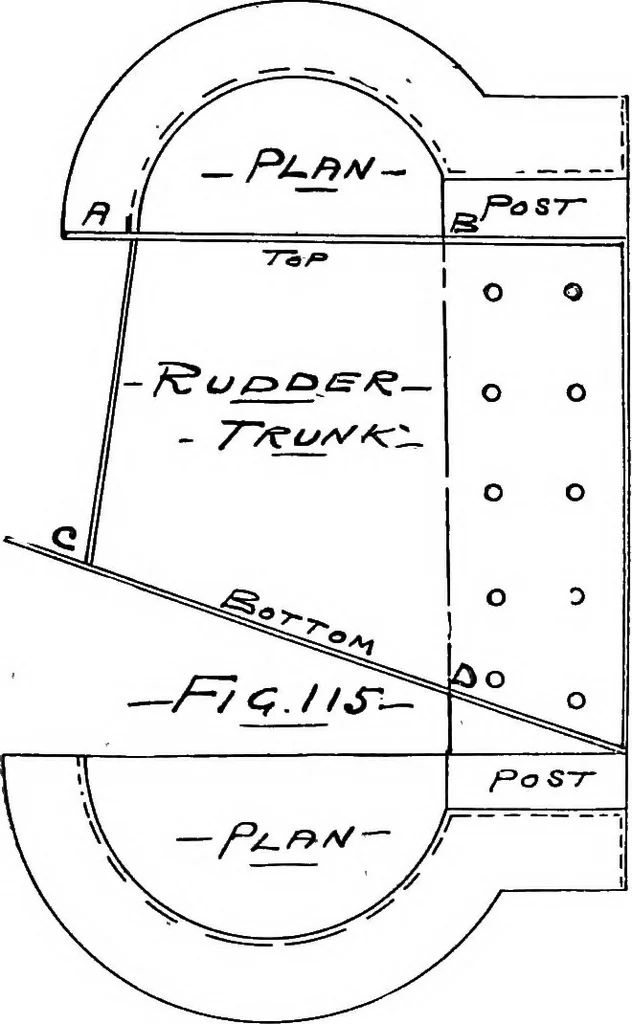

— ELSJl^r^ STEEL SHIP CONSTRUCTION 107 GK 55 and EH 55 are obtained by measuring the width of thestem post and adding same to the lines 5-5, which determines thewidth of the rudder trynk on the stern post. The bottom of the trunk on the st-ern post is. obtained by squaringacros^ the point D which…
