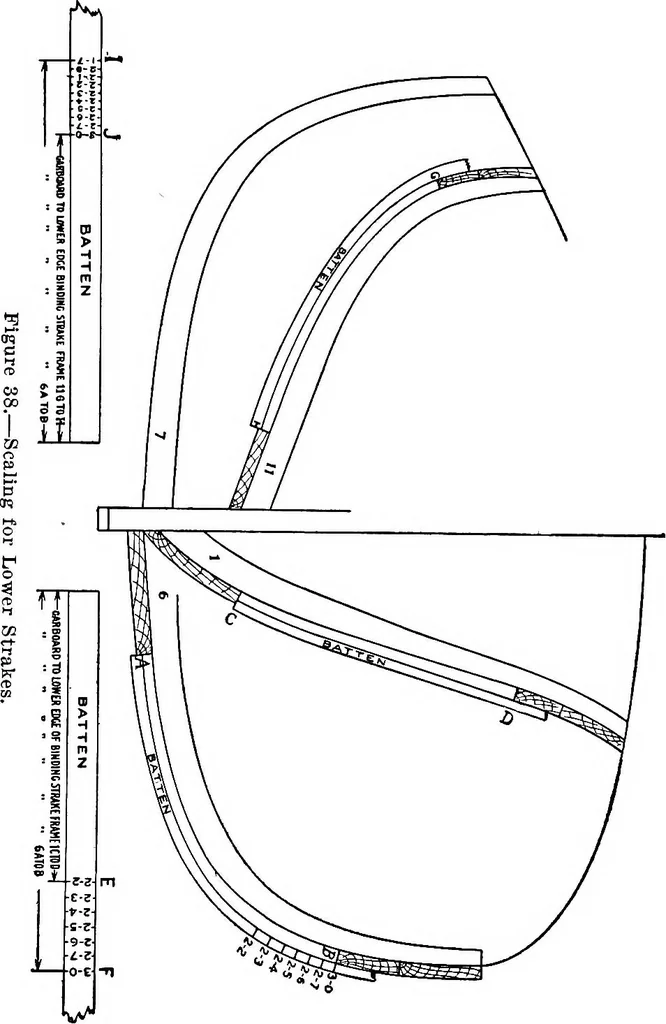

the midship frame betweenthese two planks and divide the distance into thenumber of planks desired to side in the remainderof the boat. Likewise take the girth on frame 1and frame 11 and divide these distances by thenumber of planks in order to find the width of eachplank fore and aft. A spiling… … 78 COURSE IN WOODEN BOAT AND SHIP BUILDING SCALING Bend a thin batten around the midship frame toget the girth or distance between the garboard andbinding strake as shown in Figure 38, A-B. Like-wise take the girth between the same points onframe 1, C-D. Square these two points across thebatten,…
