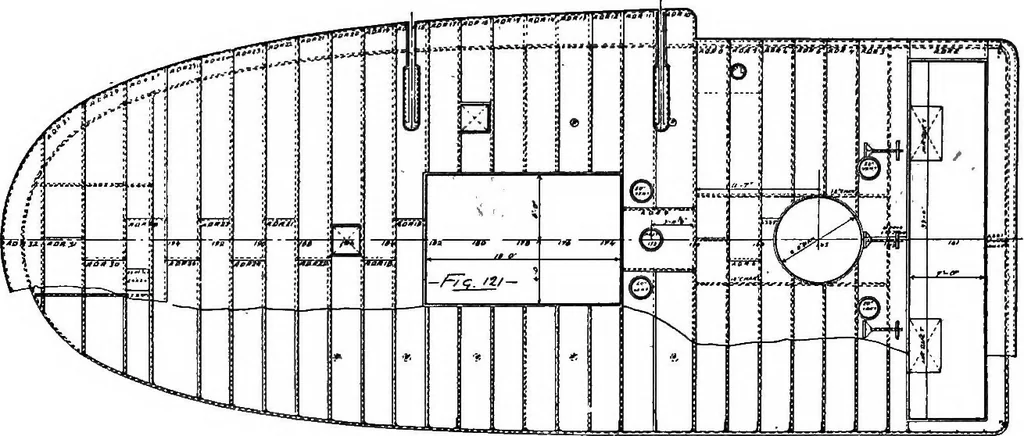

flange of the angles chipped to remove the slightly bevelededge on the flange of the angle. Fig. 123, shows the port-side of theafter deck house which is marked with the same molds used for thestarboard side. Fig. 124 shows the fore end of the after deck house which istreated similarly to the side… … To get the proper shape of the deck house plating the heel ofthe coaming angle is run in on the mold loft floor as shown by Fig.120. Fig. 126 shows the body plan with the other lines removed fromwhere the heel of the coaming angle rests upon the beams; the deck ,house runs from No. 157 to 196 on…
