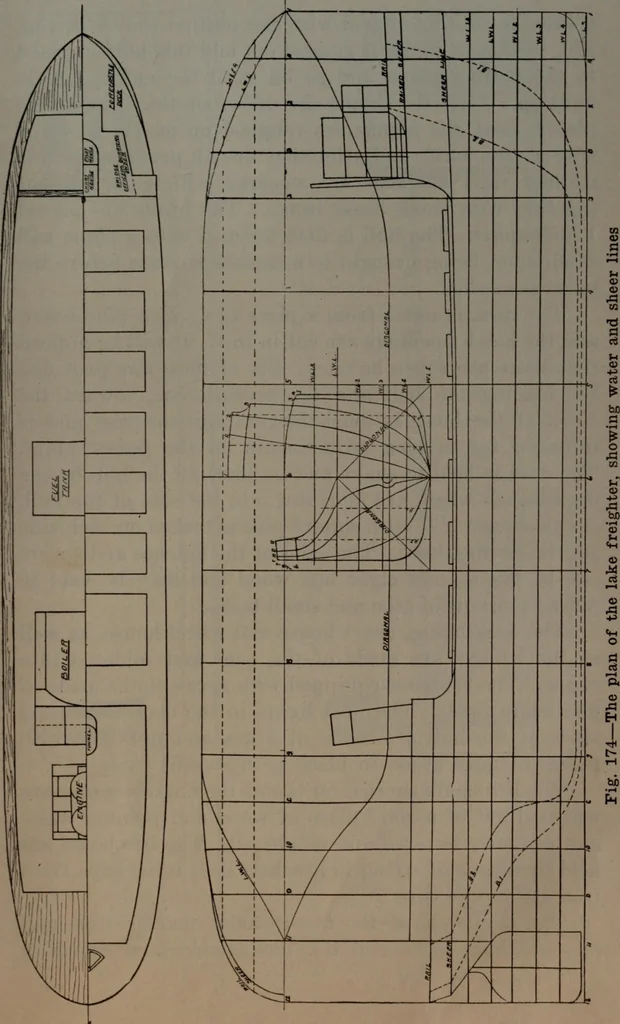

ith should be referredto constantly, and with this as a key to the complete planshown in Fig. 174, the builder will be able to proceedintelligently. The hull can be very easily produced by the bread-and-butter principle. For those who are not familiarwith this method of construction, a few words… … 262 Model Engineering a draw-knife to conform with the outline shown in Fig.176. The next plank is gouged out and this is then gluedto the bottom plank and so on until the entire hull isbuilt up. After the shapes are drawn on the yg-ii^ch pineplanks used, the planks are roughed up nearly to…
