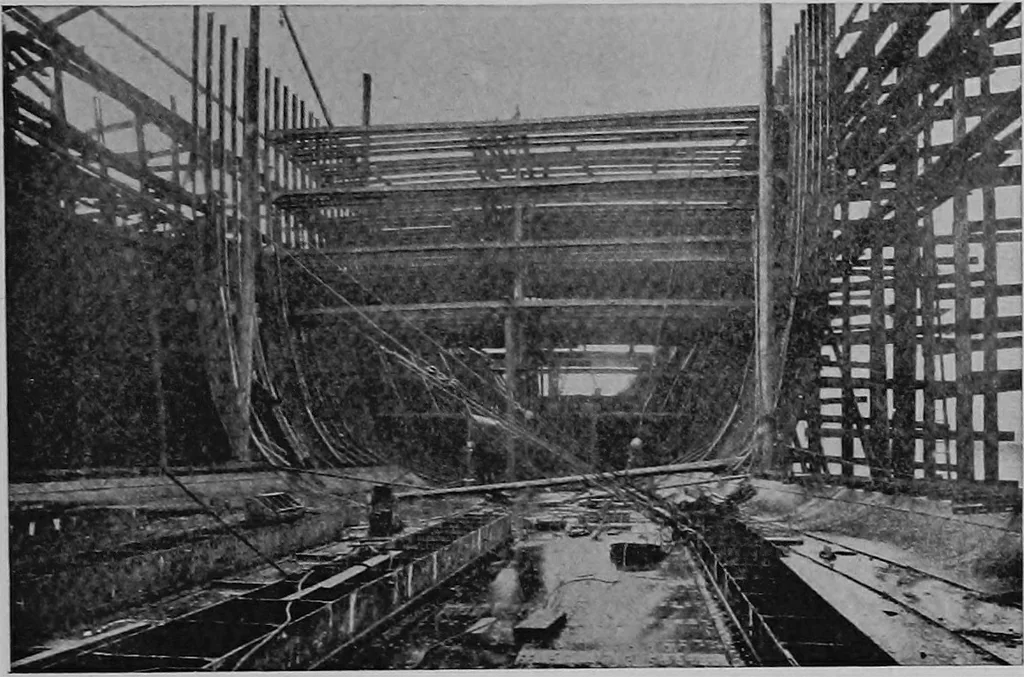

ide, the tank margin in way ofsame becoming a girder. STEEL SHIP CONSTRUCTION 147 Fig. 158 shows the forward part more fully completed, with someof the tank top plating on, also the margin angle and clips for topside frame brackets. In the process of getting the bottom framing in place a ribband… … Fig. 161. the floors are shorter the ribband is put on after the floors are in placeand not until the ribbands are fastened to the frames and line of thebottom checked is the bottom work proceeded with. All the workwith the exception of the keel and center keelson is marked fromthe ship and erected…
