Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 167

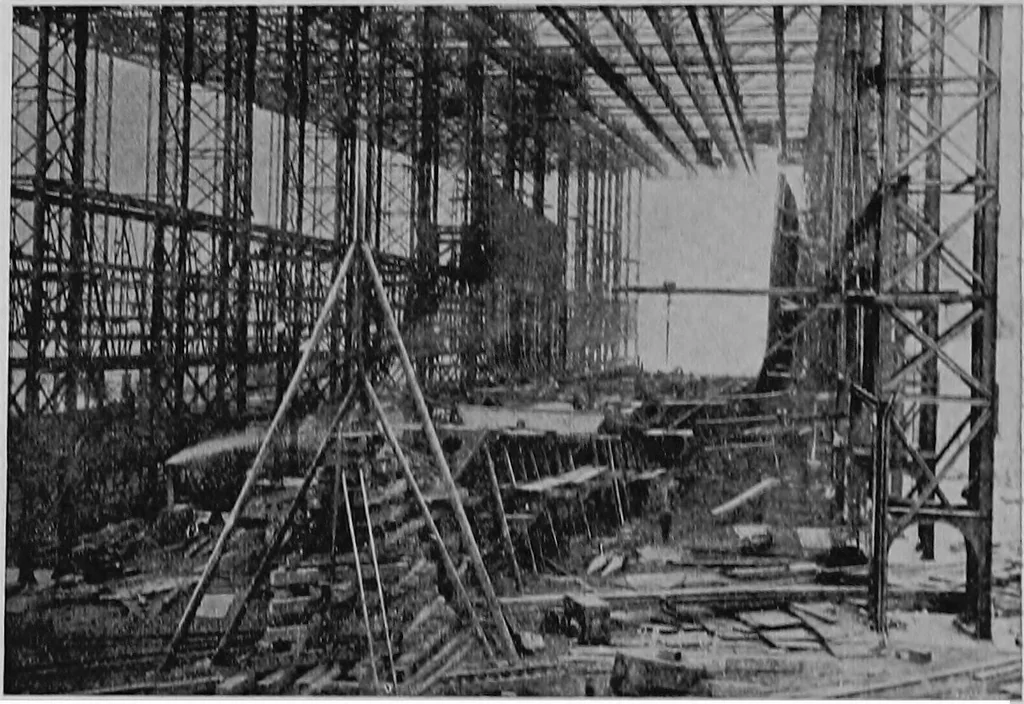

the channel framesand web frames, also the deck beams in the position as far as themachinery bulkhead. The great height of the covered-in berth stand- 1S6 I.AKIC SHI) YARD Ml.TllDDS Ol ards, and the runners with electric overhead cranes soniewliat dwarftlie height of this great vessel itself. Fig.… … Fig, 170. the bossing necessary for the outside propeller shafts, also the sweepup of the deadwood to meet the fore end of the stern post casting.Fig. 175 shows the stern framiiif^ on Jan. IS, 1906. Fig. 176 is abow view on May 5, 1906. Fii,. 177 shows the bow near completionon Sept. 6, 1906, and…
Naval architecture · Ships, Iron and steel
