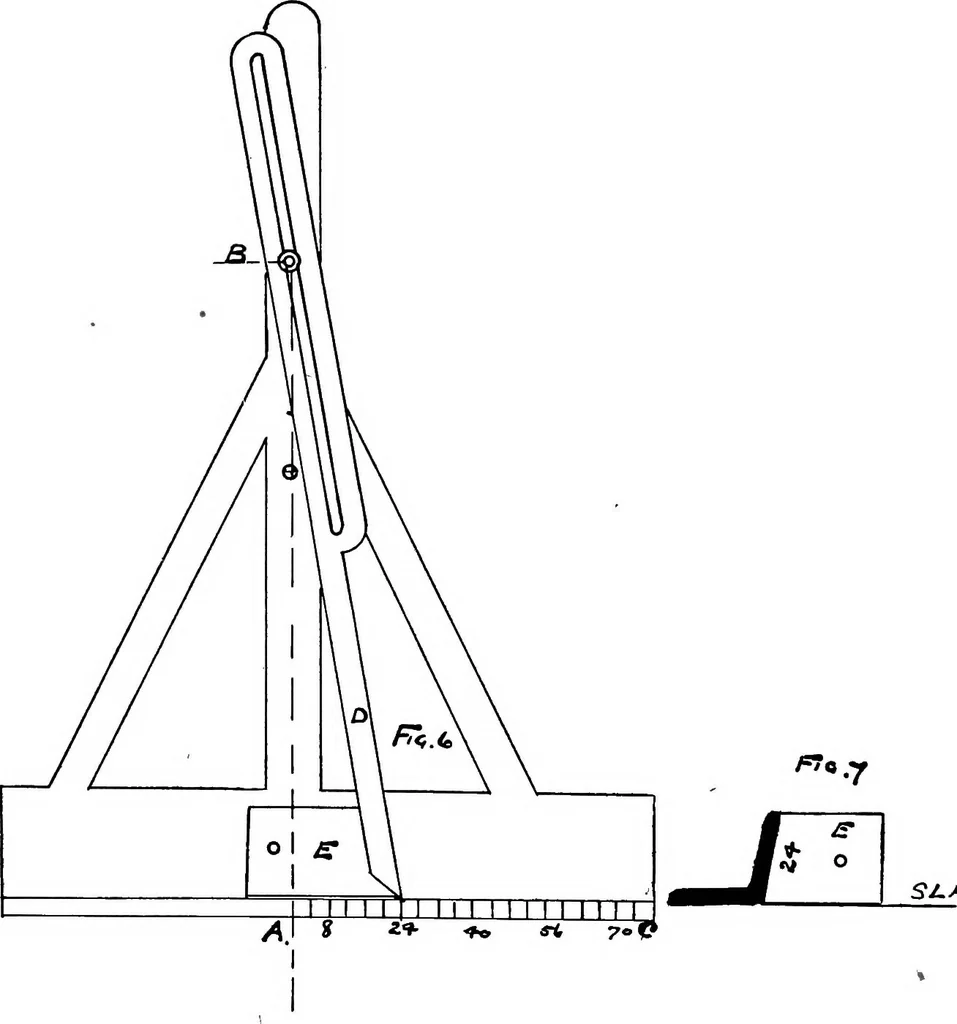

le of con-struction. STEEL SHIP CONSTRUCTION 11 Fig. 5 shows a mold made for the frame bender with the bevelsmarked on, viz.: 24, 24, 20, 16, 12, 8 and 4. The numbers represent f:c.s: -* -A* quarters, of an inch, the space between the frame lines on the flooror the difference in width of the frame… … SI.A& The method of obtaining the bevels for this practice is similar toothers only a quarter of an inch is considered instead of the inch. Fig. 6 shows a tool made of pine for the purpose of obtaining orregistering the bevels for any frame spacing. In this case thirty-six STEEL SHIP…
