Simplified mechanical perspective for the use of ... schools (1909)
Frederick, Frank Forrest, 1866-1942 · Peoria, Ill., The Manual arts press · leaf 39

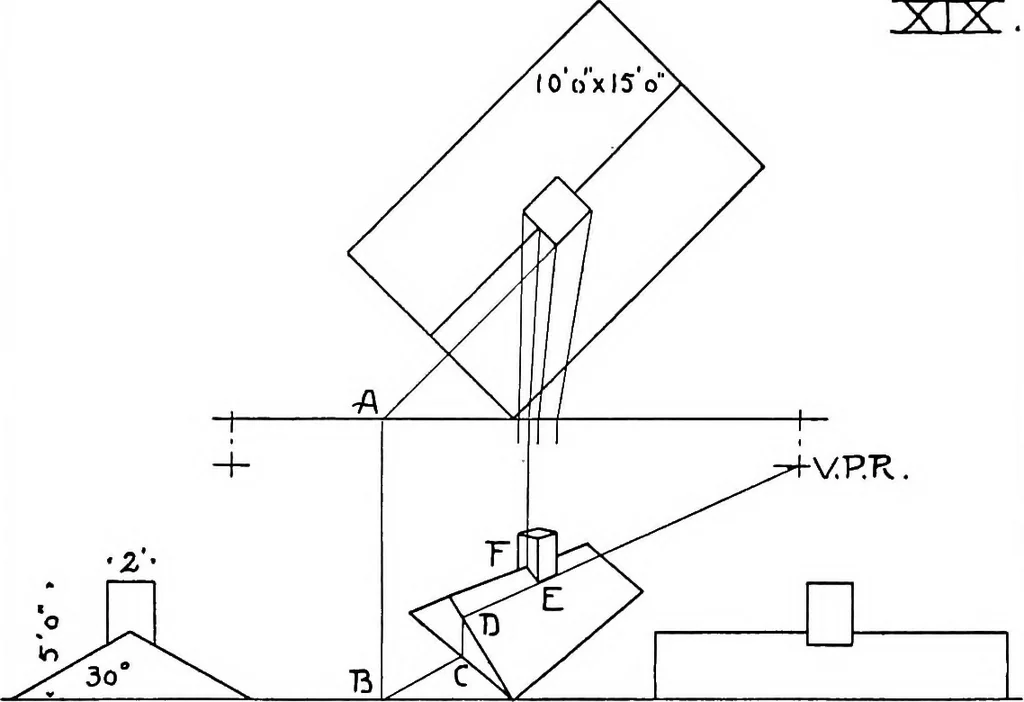

cal plane, findthe perspective of the ends of the lines that are beyond the vertical plane,and continue the lines until they meet in front of the picture plane. After students have worked Problems XVI, XVII and XVIII,they should be assigned ends and corners of rooms and halls to be drawnin… … The practice and experience gained in this work is not limited tothe actual drawing of the perspective. To measure a room and drawits plan and elevation or section—to decide upon the angle the sides ofthe room shall make with the vertical plane—to locate to the best ad-vantage, the station point…
Perspective
