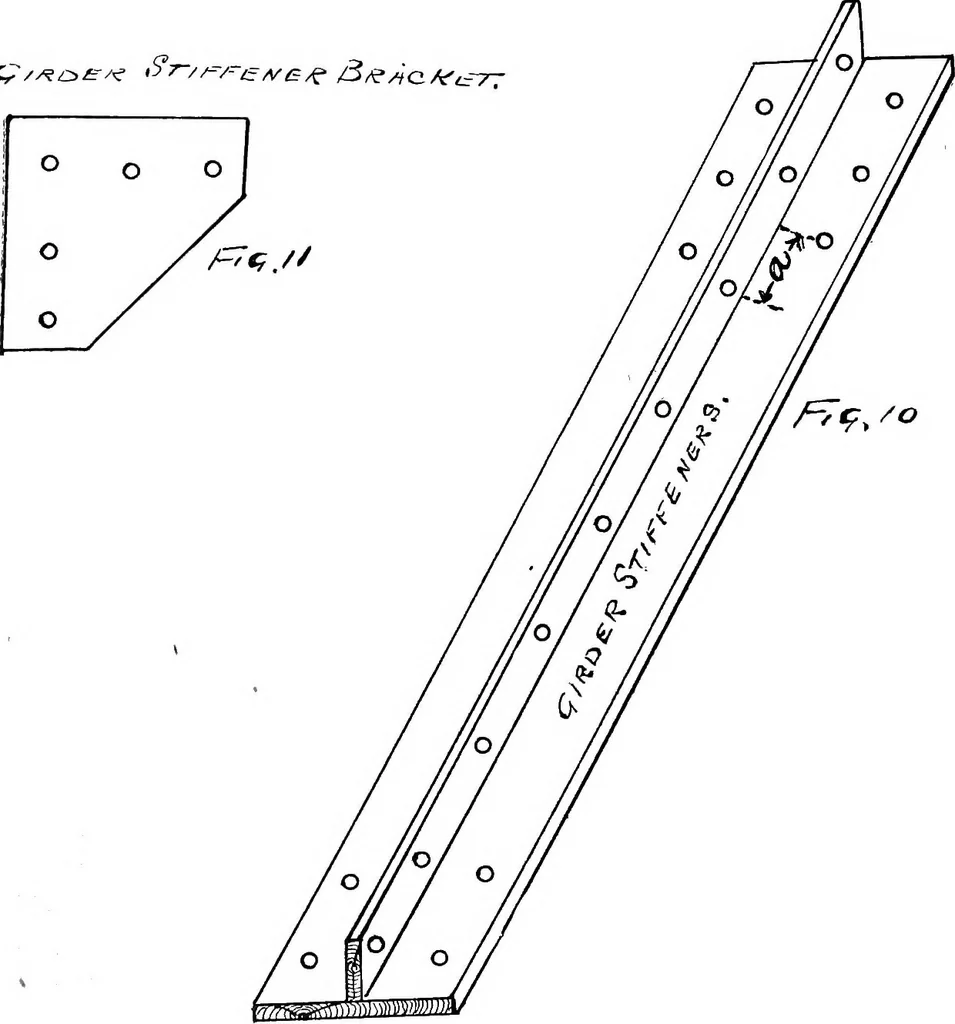

m pitch throughoutthe vessel. This mold car-ries the work on throughoutthe square body and at theends for some distance. Molds are made for the two bilge strakes only until the frames be- 16 LAKE SHIP YARD METHODS OE come almost straight ;at the bilge, when new •molds are made for theshell holes.… … The marks aaa show the holes for the side channel stringers.These marks on the mold are squared over to the inside flange of thechannel frame and from the heel of the frame the distance is measuredfor the center of the hole as shown at a, Fig. 14a. STEEL SHIP CONSTRUCTION 17 vy.-- Fig. 14 shows the…
