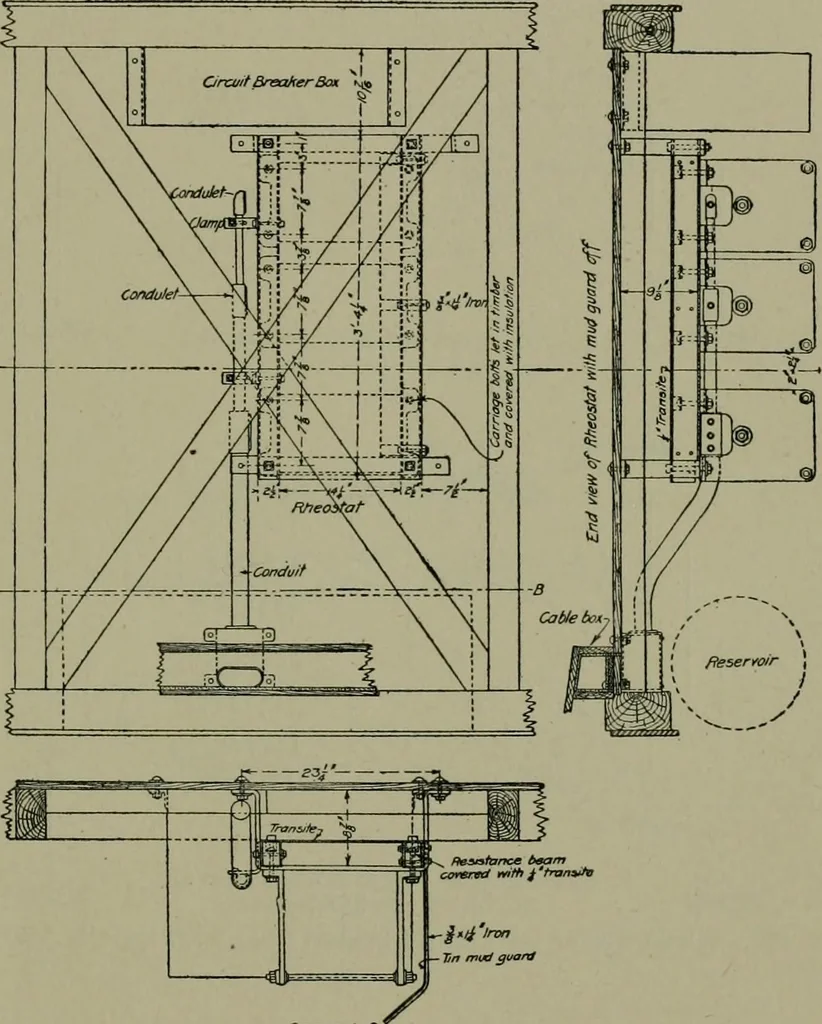

Fig. 398.—Location of heaters and cable box under longitudinal seats. RAILWAY CONTROLLERS AND EQUIPMENT 235 … Fig. 399.—Method of installing rheostats under car floor. 236 WIRIXa DIAGRAMS OF ELECTRICAL APPARATUS ARMATURES D BRAKESHOES D RESISTANCE F CONNECTIONS FOR ELECTRIC BRAKEBis AND Bjj CONTROLLERS ARMATURES o DDD RESISTANCE CONNECTIONS FOR ELECTRIC BRAKESBb and Bji CONTROLLERS Fig. 400.—Connections…
