Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 68

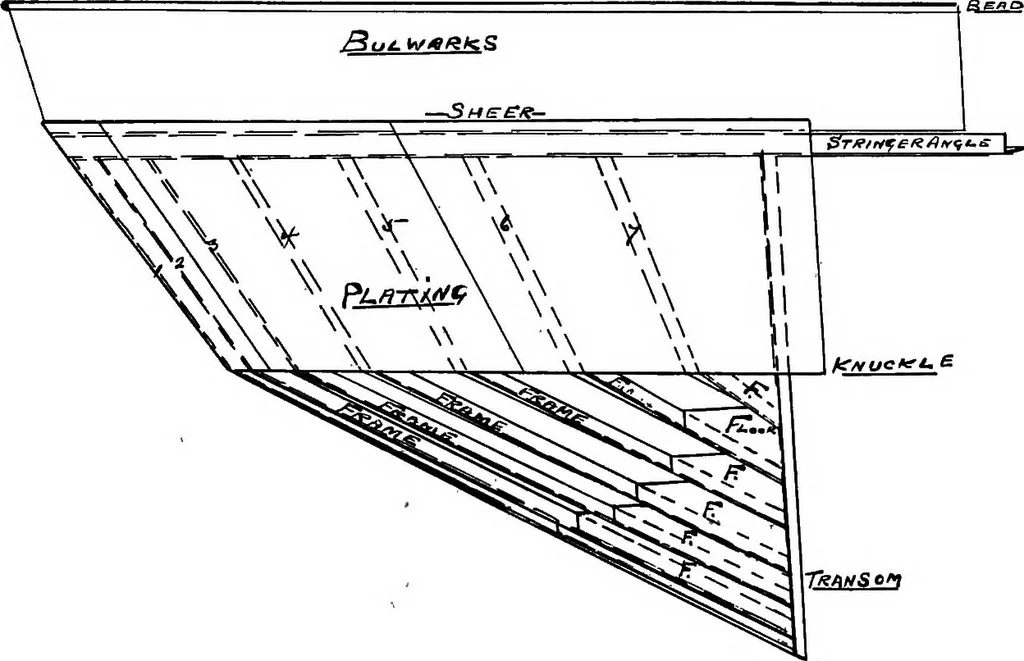

ONSTRUCTION 57 The method of transferring the lines from plan 67 to 68 is done byerecting a perpendicular line frSm A to G, representing the deck lineat the extreme after end of the deck at center. From the line AC the buttock lines, 2, 4, 6, 8, 10, 12, 14 and 16are measured square to the… … IS3 The same process is gone through with to get in the knuckle lineon the half breadth plan. ED represents the extreme after end of the knuckle at center andby measuring from this line to where the buttock lines intersect theknuckles at side and transferring same to half breadth plan furnishesthe…
Naval architecture · Ships, Iron and steel
