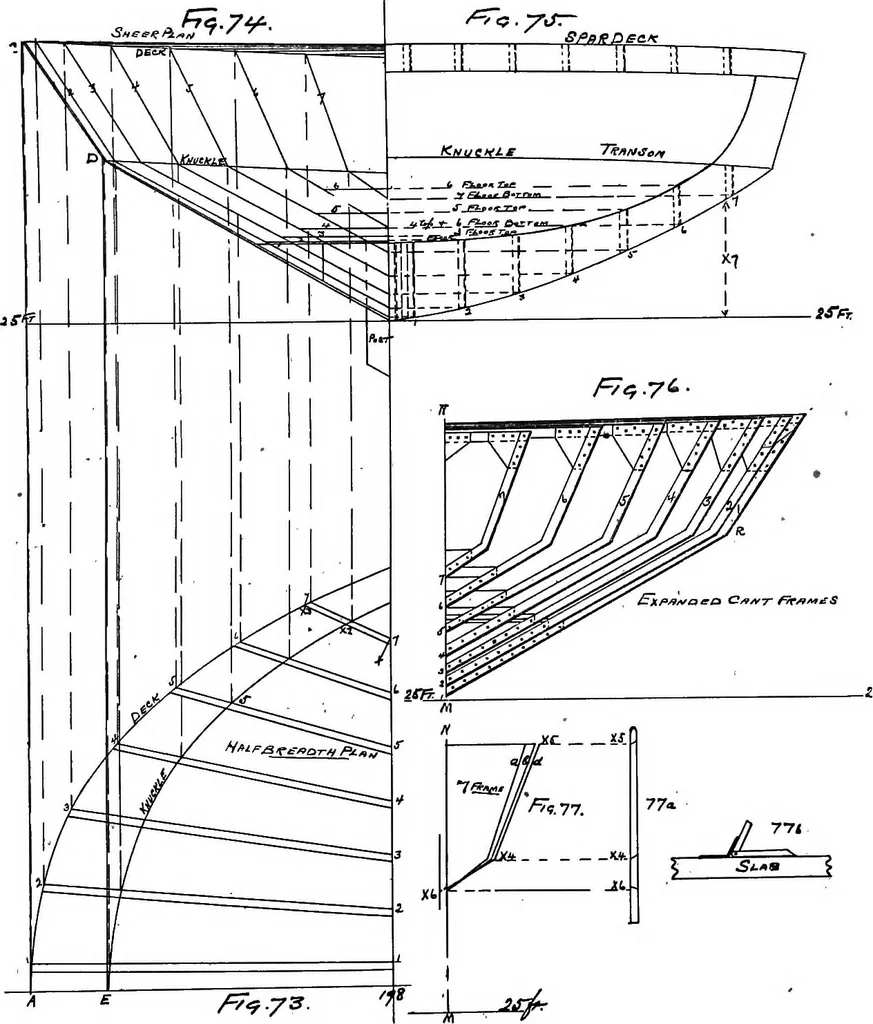

STEEL SHIP CONSTRUCTION 65 deck position of the frame on the sheer plan, as shown by dottedlines running from the cant frames in the half breadth plan I<ig. 73to the cant frames in the sheer plan Fig. 74. u^-7-5^ SPbpDeck … This determines the cant frame at deck. The same process, is goi^ethrough for the cant frame at knuckle, from the perpendicular line 66 LAKE SHIP YARD METHODS OF DE is measured where, the knuckle line in half breadth plan Fig. 73crosses the cant frame as shown by lines extending from the…
