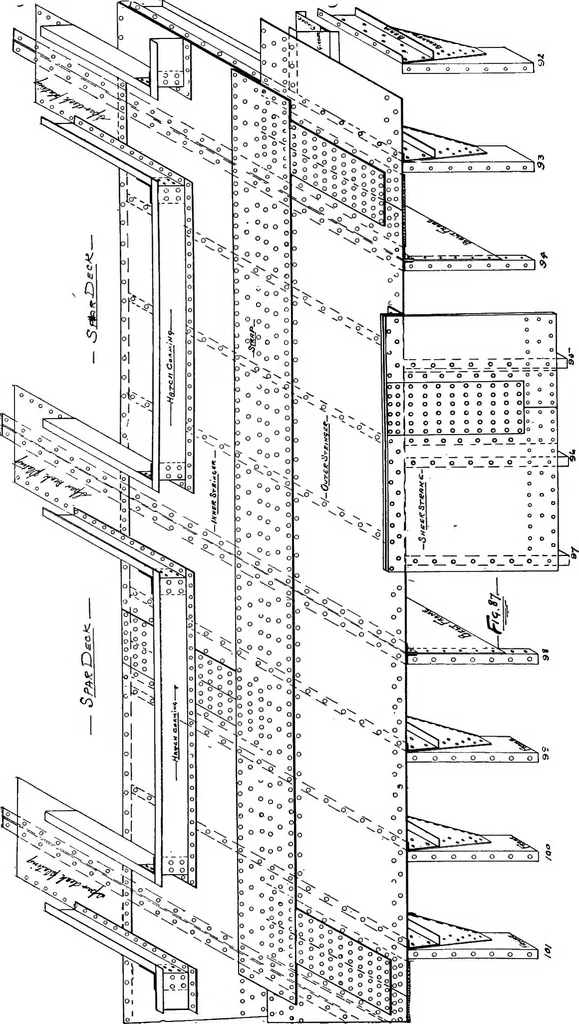

inger plate would be similar tOlaying off a shell or gifder plate. The template would be made onthe ship and the inner and outer edges copied on same to get thecorrect shape of the plate. When the plate is placed on ship the inner edge angle would belifted from same, punched, erected and riveted… … STEEL SHIP CONSTRUCTION 81 That is in a case where shoes are fitted but when a continuous angleis put on the angle is all riveted before the shell plating is put in place.The continuous angle on an arrangement of this kind saves labor infitting of stoppers where liners pass up between the collars…
