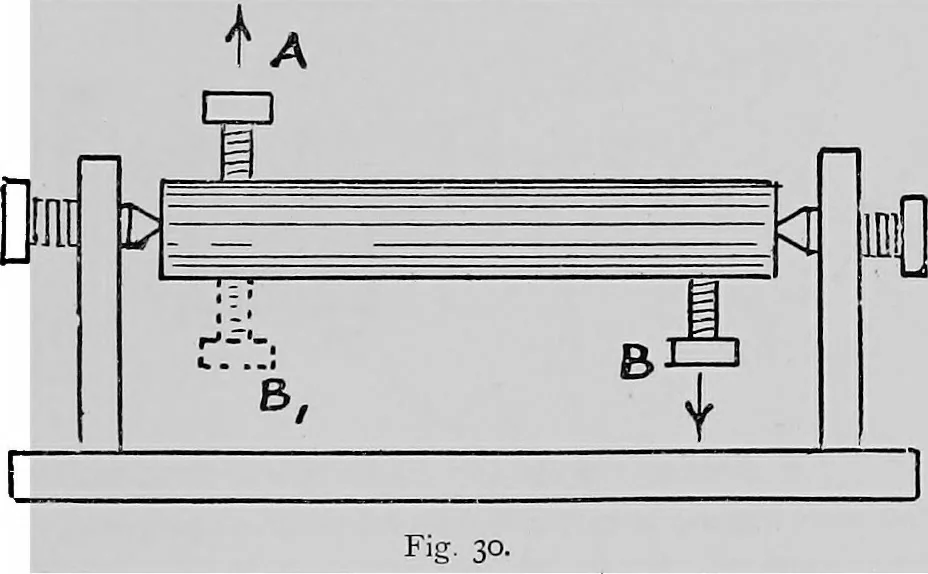

cond cause of vibration—centrifugal forcein the shaft itself—it is necessary to distinguish carefully between astatic balance and a dynamic balance. A very simple experimentwill make this clear. Let usturn up a wood spindle and mount itbetween V centres upon a board, as in figure 30. Next bore… … Fig- 3° We have now a crude model of a two-throw crank shaft, with-cranks at 180 degs., and the model is balanced statically, as thereal shaft would be in the lathe. Now wind a piece of string roundthe spindle and spin it by this means, when it will be found to makethe board vibrate most violently,…
