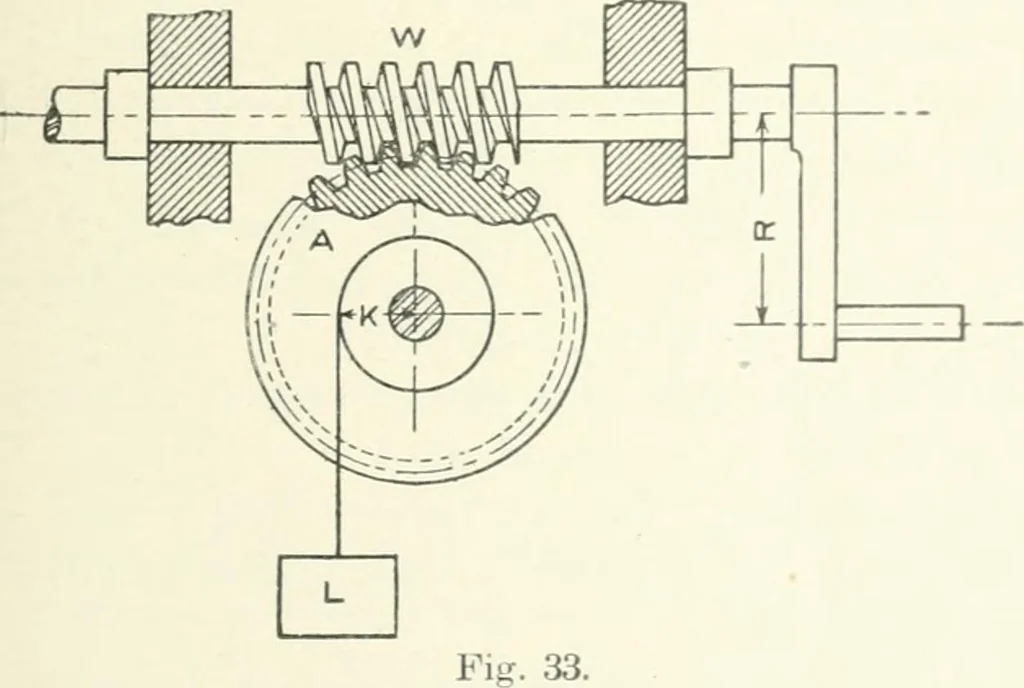

when it makes one revolution it will raise L a distance Sub- n stituting this value for the distance L moves, in formula (12), andsubstituting for distance F moves, the quantity 2 tt R, we get 340 MEC^IIANISM. 38 ZTT K Therefore, F n 2 77 K L~ 2 77 U •2 77 /.R K (13) Tf the worm is double-threaded,… … For example, a single-threaded worm makes IHO revolutionsper minute and the worm wheel has 30 teeth, how many feet perminute will a weight be raised if the cylinder on the shaft of theworm wheel is 12 inches in diameter? For each revolution of the worm wheel the worm must make80 revolutions, hence…
