Mechanical and marine engineering science ... Specially written as a handbook to the Board of Trade examinations for extra-first-class engineers (1909)
Somerscales, A. N · Glasgow : J. Munro; London, Simpkin, Marshall, Hamilton, Kent · leaf 300

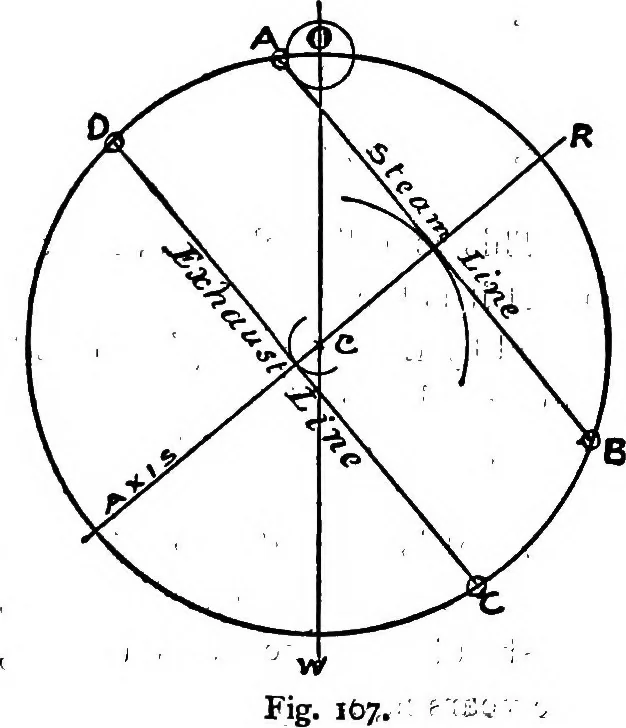

ong the aire from A to B; atwhich the amount of lead is obtained—say at O, so that OCequals the lead on that centre—the arc of revolution performedfrom the dead centre untilthe cut-off is thus OB in-stead of AB. But in constructing avalve diagram it is con-venient to first fix the dead■centre… … agS THE VALVE DIAGRAM. .There is no fresh principle involved for the position of therelease and compression epochs. As these depend upon the exhaustlap, it I is only necessary to describe a circle round, C with radiusequal to the exhaust lap, and then draw a line DC touching- thiscircle and…
