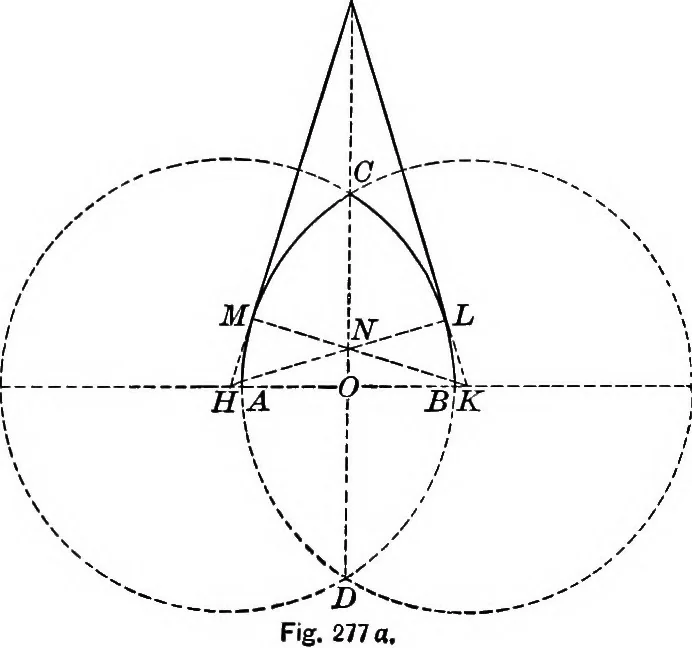

310 TRUSSES AND ARCHES 4. Show how to construct the gable over a given arch, if the lengthof one side of the gable is given. Suggestion. — With the radius of the circle and the given lengthas legs construct a right triangle. The hypothenuse will be the lengthof KP. Locate point P. 5. Show how to…
