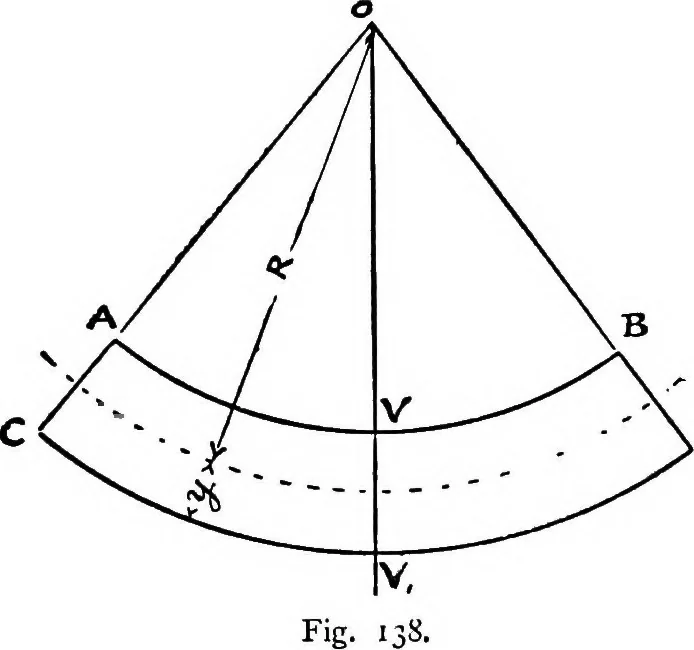

r or beam with tne radius of curvature, viz.:—stress _ ^£ R where E is the modulus of elasticity, R is radius ofcurvature, y is distance from neutral axis at which thestress is taken. We must assume at the outset that the bar takes the form■shown in sketch in all respects. The curve must be… … Consider the under surface of the bar—C V^ D. We see that-after bending it is longer than the neutral axis plane. If the bar■ made a complete circle (which it would do if long enough) thelength of the neutral axis would be = R x 2 tt, and the length df ENGINEERING ESSAYS. 367 the under surface…
