A source book of problems for geometry, based upon industrial design and architectural ornament (1912)
Sykes, Mabel, 1868-, Slaught, H. E. (Herbert Ellsworth), 1861-1937, Lennes, N. J. (Nels Johann), 1874- · Boston, Allyn and Bacon · leaf 207

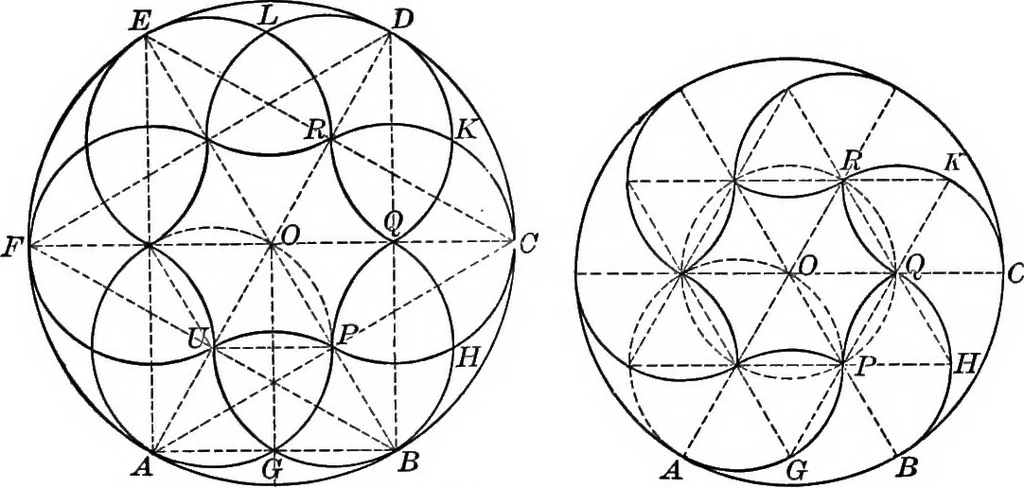

r, find the area of (a) The segment bounded by PG and the chord PG. Ans. ^(2n--3\/3).Ans. — (2 7r-3V3).Ans. l!(-9V3-4 7r). (J) The oval OP. (c) The figure UVOWP. 194 GOTHIC TRACERT: FORMS IN CIRCLES (d) The figure UVOWPZOYU. (e) The figure ANXUYG. (/) The entire curved figure A GBHCK etc. Ans.… … Fig. 175. — From Gothic Wood-carving.Brochure Series, July, 1900, p. 113. Fig. 175a. — Diefenbach,Series B, PI. XXX. EXERCISES 212. 1. Show how to construct Figs. 175 and 175a. Suggestion. —Use Fig. 174. G, H, K, etc. are the centers for UP,PQ, QR, etc. 2. If OA = r, find the area of (1) the curved…
