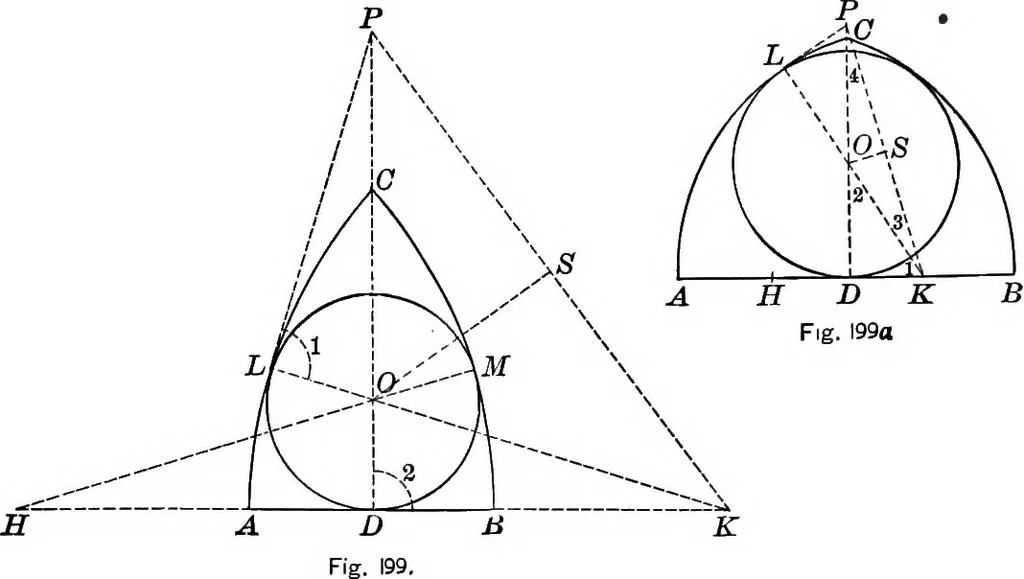

D = OL, and the circle tangent to j4C at L. Prove OL = OM. (b) The method given in § 246. (c) The following special method.* Make PD = AB. With Pas center and DB as radius cut the arc AC at L. Draw LB cuttingCD at 0. Prove (1) ZPLB = rt.Z, using APLB and PDB;(2) OL = OD, using A PiO and ODB; (3) OL… … 242. Figures 199 and 199a represent circles inscribed in Gothic archeswhich are not equilateral. Figure 199 shows the lancet arch and Fig. 199a thedrop arch. In each case points H and K are the centers for the arcs BC andAC, respectively. EXERCISES 1. Show how to inscribe a circle in a lancet arch…
