A source book of problems for geometry, based upon industrial design and architectural ornament (1912)
Sykes, Mabel, 1868-, Slaught, H. E. (Herbert Ellsworth), 1861-1937, Lennes, N. J. (Nels Johann), 1874- · Boston, Allyn and Bacon · leaf 248

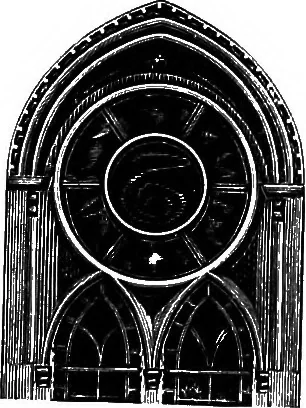

Fig. 21 Fig. 2lla. — From NotreDame, Pans. 255. Figure 211 shows a design like that of Fig. 810, with AQ and PBfor radii of AC and CB, respectively, each | of AB, and the radii for EG, EH,Sf, and VS., each | of AO. EXERCISES 1. Show how to construct the figure. Suggestion. — Let Ox and Ow be | of…
