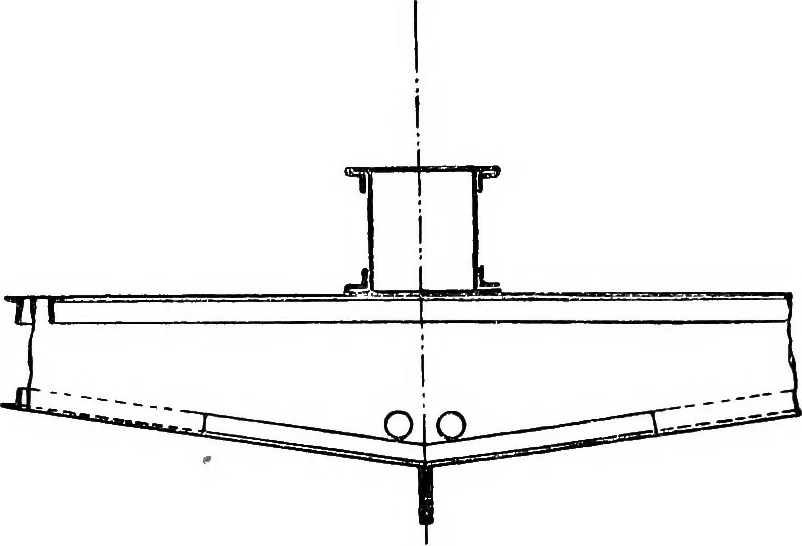

edin shipwork. (8) 9. Sketch a usual shift of butts of deck plating, and show howthe several plates are secured together, and to the beams. Specify 284 Appendix. size and pitches of rivets which would be used, assuming the platingto be T^ thick. (12) 10. Give a rough sketch of a frame of a… … Fig. T13. Calculations. 12. State the fundamental conditions which must be fulfilled bya vessel when floating freely and at rest in still water. (6) 13. The areas of successive water-planes of a vessel are, begin-ning with the load water-plane, 14,850, 14,400, 13,780, 12,950,11,770, 10,130, and…
