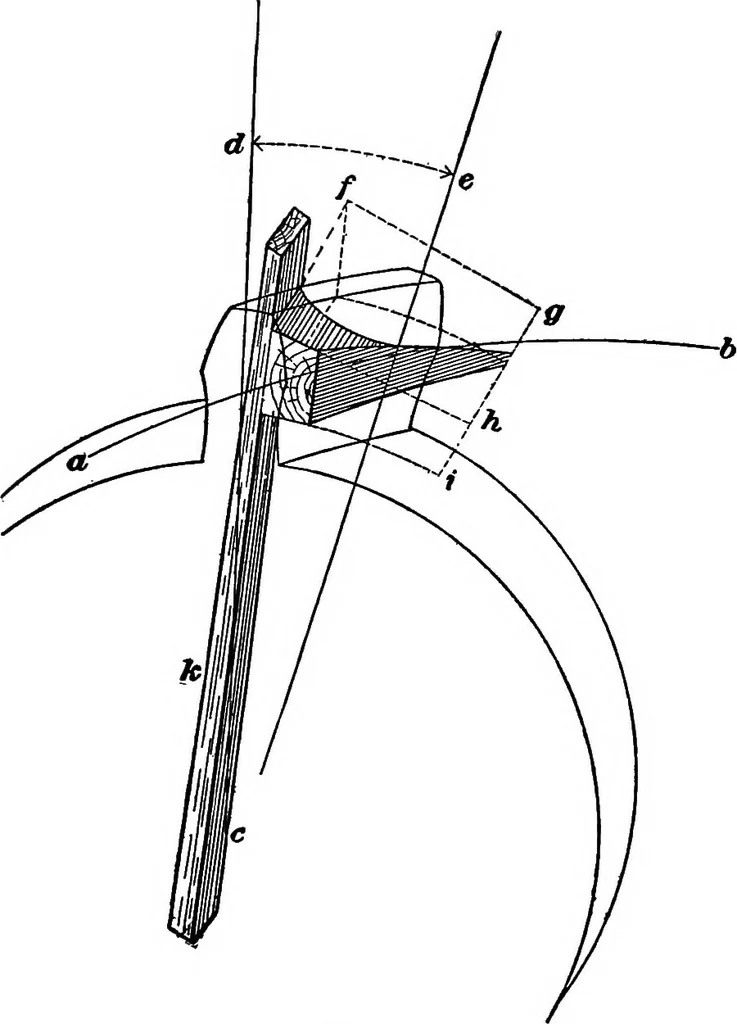

the block at rightangles. After the right position has been fixed by thescrews mark across the block along the beveled edge of k,then remove k, and draw a line across the curved side ofblock to meet the line across the edge / and square with /.Make another line parallel to and 3 away from this… … Fig. 67. like the edge of plane-iron when the stone was true, shownin the figure by the curved line a b. The rest of the blockmay then be cut away so that it will go between the teeth, 172 PATTERNMAKING. only being careful to preserve the angle on line a b. Thisline, in my opinion, is the correct…
