The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 341

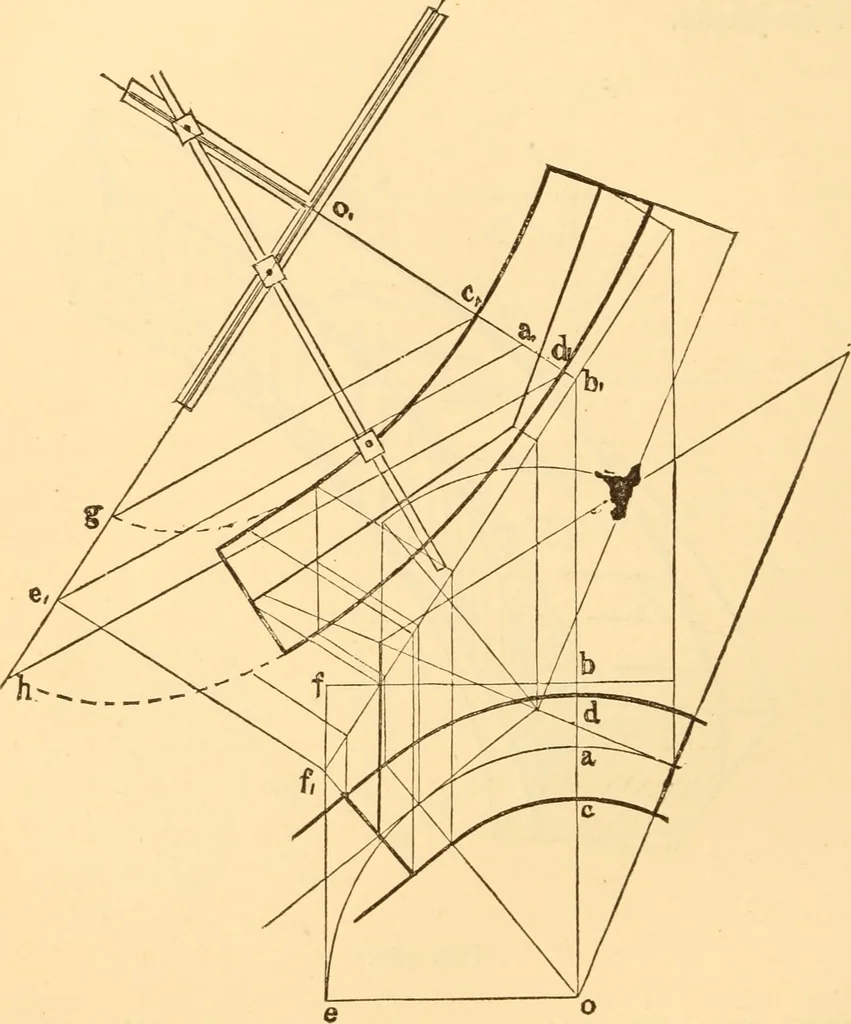

uble, however,attending the process of obtaining the axes, so as to be ableto employ the trammel in describing the curves, is, in manycases, greater than it would be to obtain the curves throughpoints found by ordinates, in the usual manner. But as 302 STAIRS. this method for certain reasons may be… … Fig. i68. of a cylinder and with the heights set up, the intersectionline obtained, the measuring base-Hne drawn, the rake-lineestabhshed, and the tangents on the face-mould located—allin the usual manner as hereinbefore described. Then, toprepare for the trammel, from o, the centre of the…
