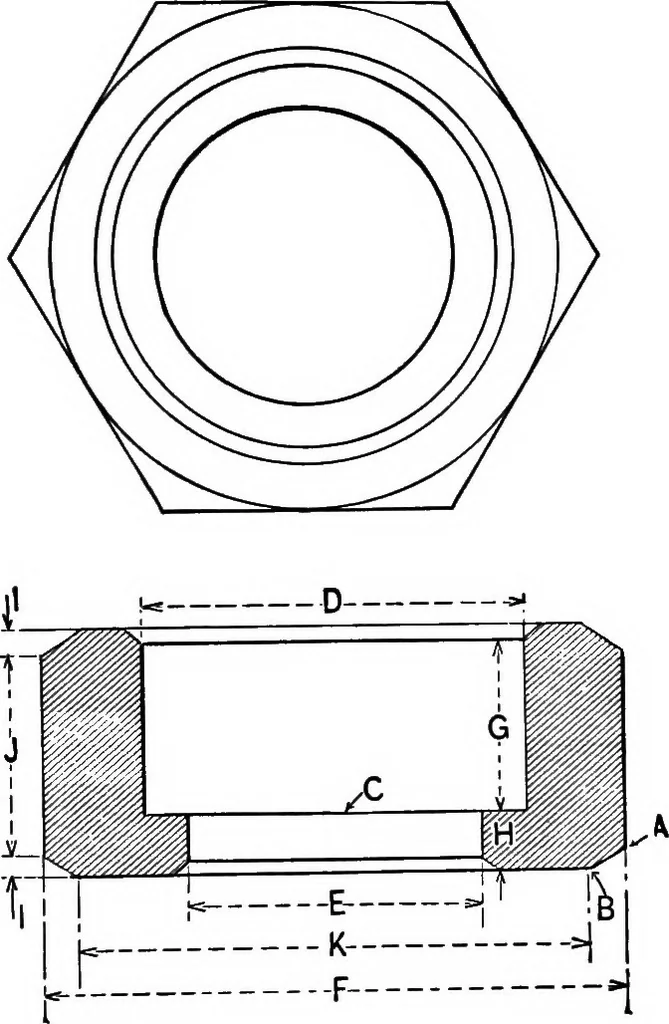

ingin core had best be on line C. It will be noticed that letters are used to denote dimen-sions in the figures illustrating this chapter, the same lettersbeing used through all of the figures. 250 A VIBRATOR-PLATE PATTERN. 251 Fig. 118 shows two pieces: the nut, i, complete as re-gards the… … Fig. 117. sharp angle which would otherwise occur at this point.The flat sides and the inside of D require a little draft.The other piece, 2, in this figure, is a ring bored to fitover the chamfered end of nut, as shown in the figure, with 252 PATTERNMAKING. the outside diameter y greater than…
