Barrows, F. W. (Frank Wilson), b. 1853 · New York, N.W. Henley Pub. Co. · leaf 259

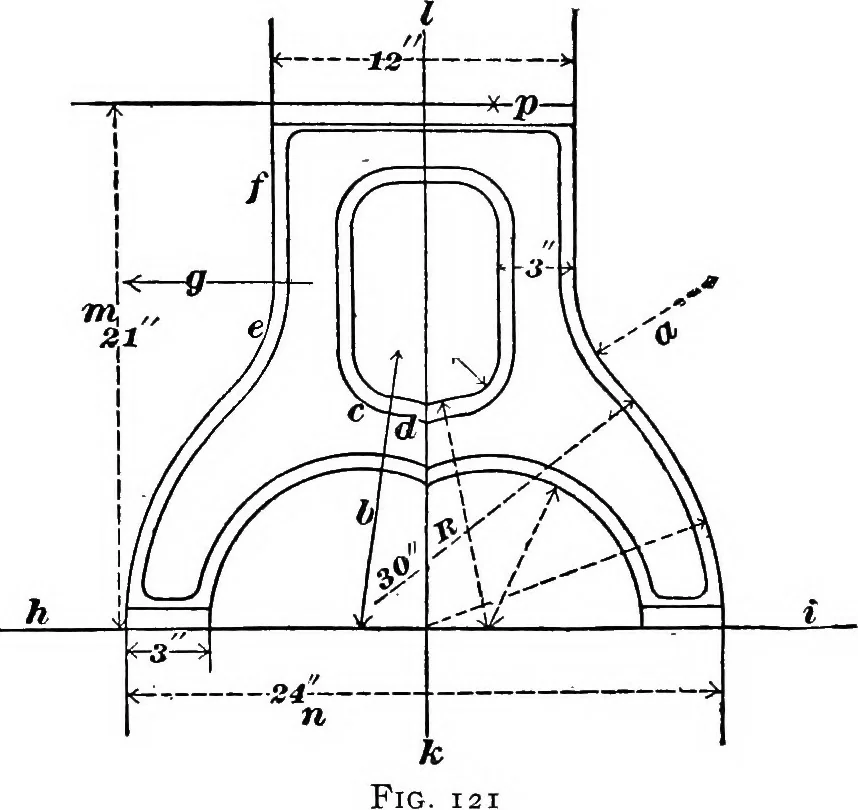

s the right place for joint between e and /.If you should leave a base Une at h i and a centre line atk I, they would not necessarily affect the accuracy of draw-ing. Unless you make a full-size drawing, the pattern-maker will probably make one himself. Then your nice17 257 2S8 PATTERNMAKING. scale… … state how much is to be allowed for shrinkage, whether thecasting is to be brass, iron, or steel. In short, if you aregoing to make a drawing for the patternmaker, make it sothat it will answer all questions necessary for the pattern-maker to know the answer to. There is another kind of drawing,…
Patternmaking
