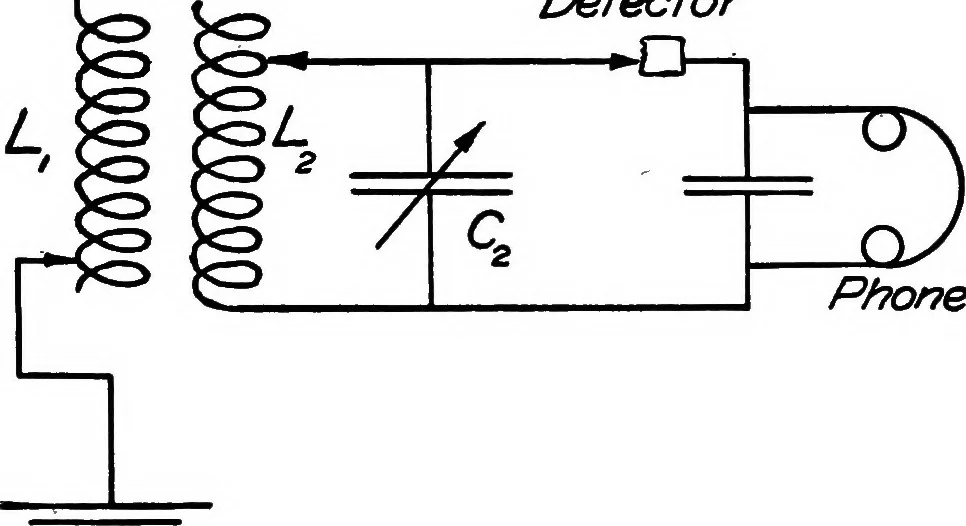

lephones is omitted,the capacity of flie telephone cords and windings beingsufficient to store the requisite amoimt of energy. Most inexpensive crystal detector sets on the marketemploy this circuit or a slight modification of it. 66 ELEMENTS OF RADIO TELEPHONY Loose Coupler Circuit.—The circuit… … Phones Fig. 32.—Crystal detector set using loose coupler. coupler will give greater selectivity and sharper tuningand thus eliminate a considerable amount of interference.This circuit is illustrated in Fig. 32. Here L\ and Li aretwo inductance coils arranged so that the number of turnsincluded in…
