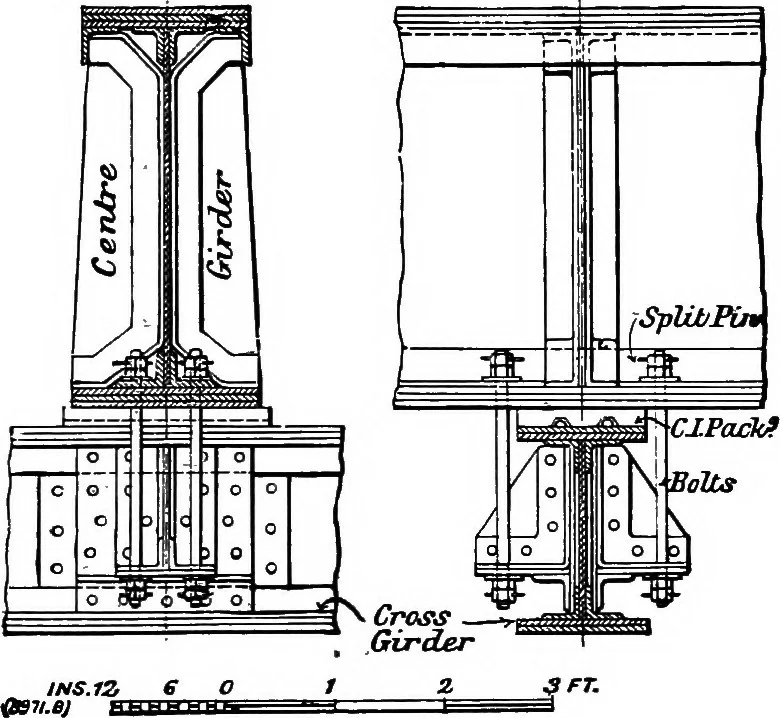

nts for other girders may be read offdirect. It will be apparent that it must be necessary to STRENGTHENING OF RIVETED BRIDGES. 129 place the centie girder at such a height as to leave a spacebetween the old and the new work greater than the amountto be screwed up, this excess clearance being… … Fig. 72. Great care is necessary at the outset to ascertain the truespacing of the cross-girders, to ensure that the bolt-holes inthe bottom flange of the centre girder shaU come wheredesired. The fixing of the cross-girder brackets also needsclose attention to avoid after trouble, the bolt-holes…
