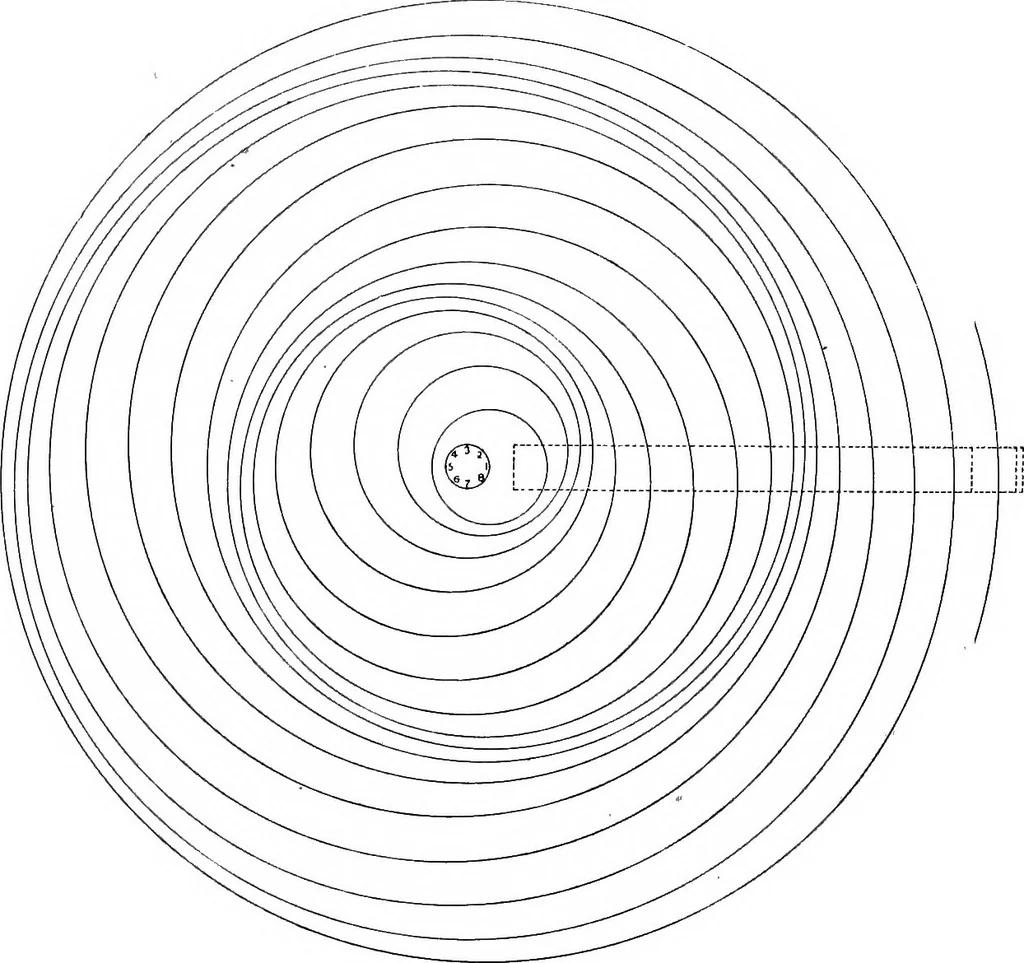

ircleinto 8 equal parts, and number the points of division 1, 2,3, etc. With 1 as centre draw a circle of \ in. radius, with2 as centre draw a circle of f in. radius, with 3 as centre draw 0. s. 5 66 LONGITUDINAL WAVES [CH. IV a circle of 1 in. radius and so on, at each step increasing theradius by… … Fig. 38 We shall then have a diagram similar to Fig. 38. Put apin through the centre of the card and hold before it another 84-86] LONGITUDINAL WAVES 67 card with a slit cut in it, the slit being in the position shewnby the dotted lines in the figure. If now the card with the circles drawn on it is…
