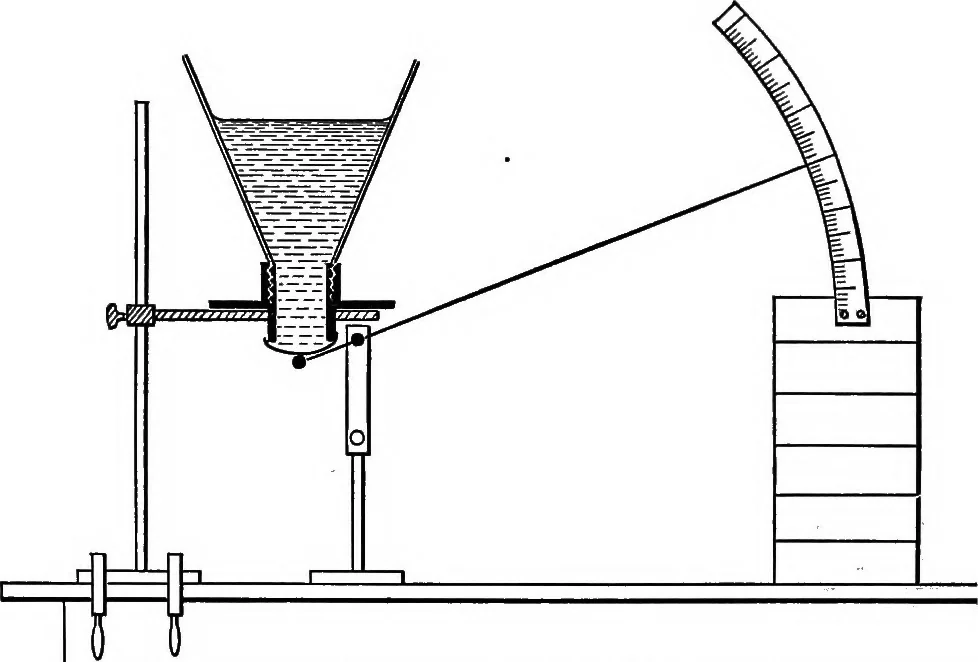

Fig. 91. THE PROPERTIES OF LIQUIDS 115 (3) A long pointer, pivoted as shown in Fig. 92. (4) A scale along which the pointer plays.Procedure: (fl) The rubber diaphragm is fastened to the unthreaded end ofthe flanged tube, which may conveniently be constructed with asliding collar for securing the… … Fig. 92. (i) The tube is mounted with the flange horizontal and diaphragmbelow, as shown in Fig. 92, and one of the glass receptacles with itsbrass base is screwed into place above. We thus have a vessel witha flexible bottom and capable of being filled with water. (c) The pointer is adjusted with…
