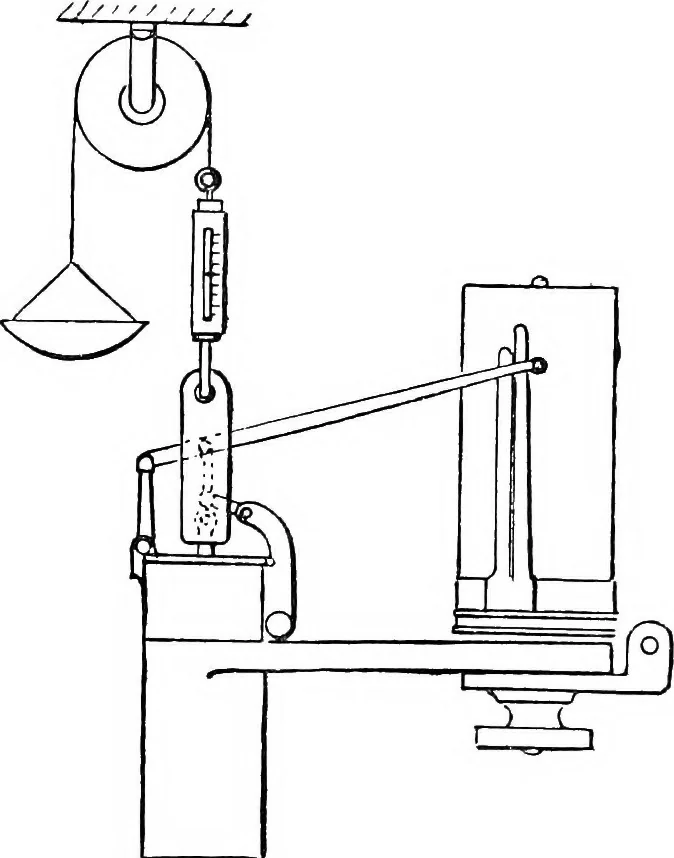

, a simplemethod of testing the springs is as follows: Construct astirrup of brass, as shown in fig. 73, having a hole in itsufficiently large to allow the indicator piston rod to pass 112 TESTING GAS ENGINES. through it. This stirrup is placed in position by disconnect-ing the links attached to… … ezO^ ilG. 73.—Arrangement of Indicator for Testing Gas Engines. upper end of the balance over a suitable pulley, as shown.Weights may then be placed upon a scale pan at theend of the cord, and adjusted until the balance reads variousdefinite loads. The use of an accurate balance can hardly…
