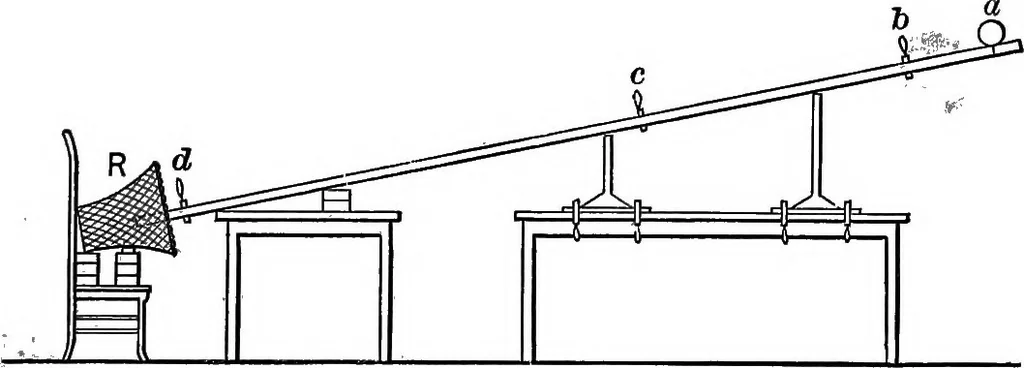

he pressure-producing compo-nent, £0, diminishes. Finally, if the plane be vertical,OH equals BU, pressure against the plane ceases, and theball falls freely under the action of gravitation. 25. Experiment 2. — Determination of the Laws of Motion byMeans of the Inclined Plane. Apparatus ; (1) A… … Fig. 18. Procedure : (a) Mount the plane upon two tables as shown in Fig. 18. Itmust be inclined at such an angle that the ball released at a, withoutinitial impetus, will take rather more than three seconds to reach thelower end. Adjust a basket or other receptacle at E to catch the ballat the end…
