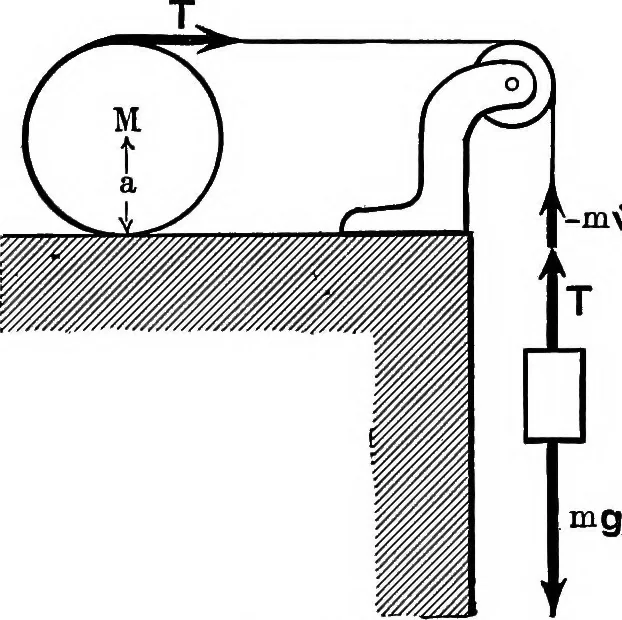

etic energyof translation and kinetic energyof rotation. 3. In Fig. 117 the larger cir-cle represents a cyhnder of massM which roUs along a rough hori-zontal table, under the actionof a falling body of mass m. Theright-hand end of the ribbon,which connects the falling bodywith the cylinder, is… … Fig. 117. 232 ANALYTICAL MECHANICS Torque Method. — The cylinder is acted upon by four forces — its weight Mg, the normal reaction N, the frictional reaction F, and the tensile force of the string T. Taking the moments about the element of contact we obtain G=T.2a, where o is the radius of the…
