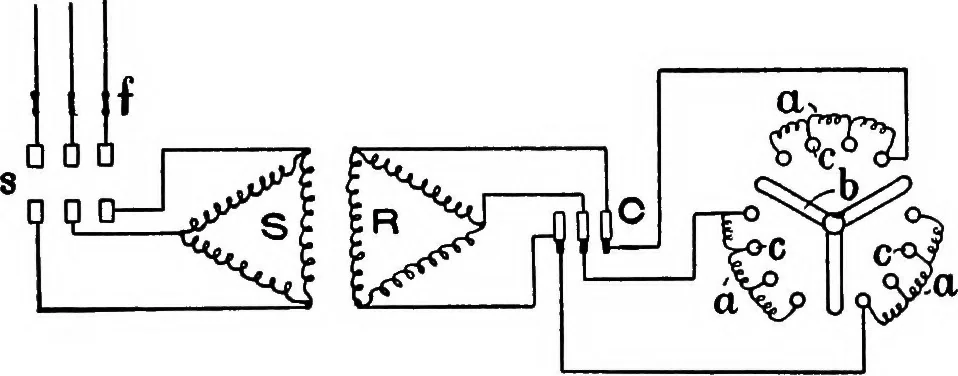

n fig. 3. S is thestator winding of the motor and R the rotorwinding. C are the collector rings or sliprings, s is the three-pole main switch, / isthe three-pole fuse, b is the arm of thestarter, moving over the contacts c. The starting of Motors and Rotary Converters 501 resistances between the… … rig. 3.—star-connected Starter lor Three-phase Motors out in their branches like a star or letter Y;this is also sometimes known as a three-leggedconnection. See Connections, Three-phase. Mesh Connection. — The starting re-sistances may be joined in a mesh connectionsimilar to that of the stator…
