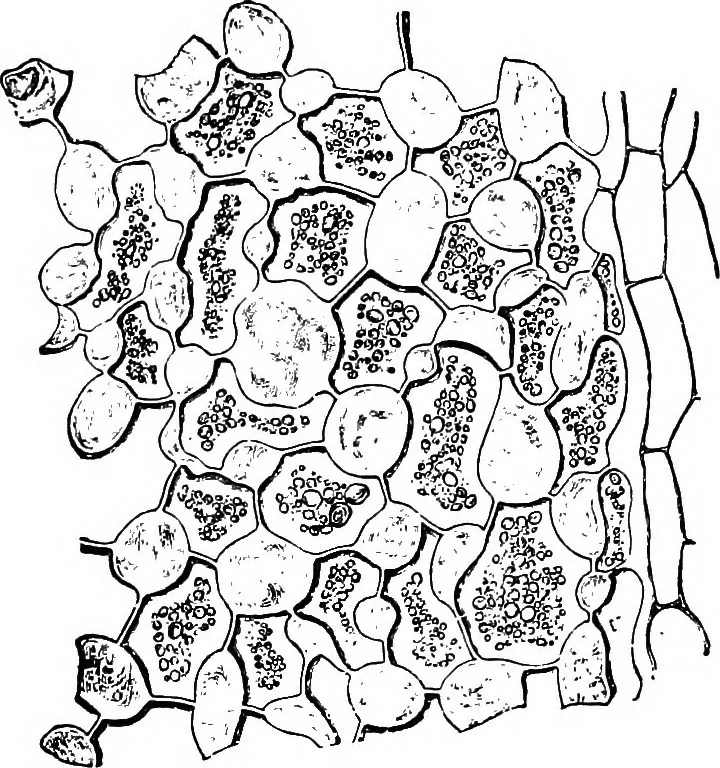

the hour-glass-shaped column cells C^ROB BEAN. 277 swell greatly, so that the cavities are hardly discemable. Intercellularspaces are, however, distinctly evident. The layer is 20-35 /* thick. 3. Parenchyma. The walls throughout are greatly swollen. Inthe outer and middle layers, the cells are… … FiG. 228. Carob Bean. Endosperm with thickened cell walls. (Moellek.) ishes toward the edges, where it is almost entirely absent. The partitionsbetween the cells are enormously thickened, owing to a deposition ofa carbohydrate material in the intercellular spaces. On heating withwater this…
